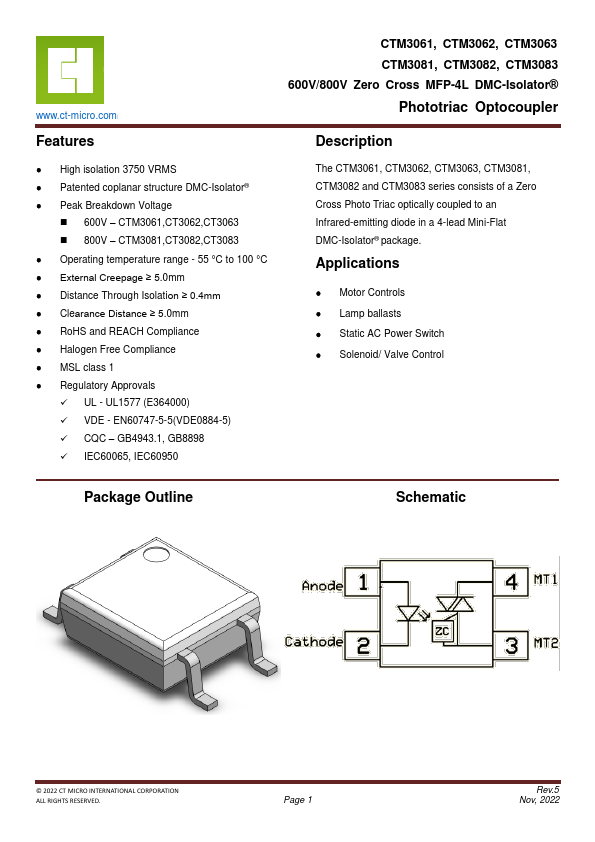

CTM3062, CTM3083 Phototriac Optocoupler

CT Micro

Description

www.ct-micro.comN .
The CTM3061, CTM3062, CTM3063, CTM3081, CTM3082 and CTM3083 series consists of a Zero Cross Photo Triac optically coupled to an Infrared-emitting diod.

📥 Download Datasheet

CTM3062 Datasheet Preview — This datasheet PDF includes multiple part numbers: CTM3062, CTM3083. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CTM3062, CTM3083
Manufacturer: CT Micro
File Size: 1.19 MB
Datasheet: CTM3083-CTMicro.pdf
Description: Phototriac Optocoupler
Note: This datasheet PDF includes multiple part numbers: CTM3062, CTM3083.
Please refer to the document for exact specifications by model.

Features

* High isolation 3750 VRMS
* Patented coplanar structure DMC-Isolator®
* Peak Breakdown Voltage
* 600V
* CTM3061,CT3062,CT3063
* 800V
* CTM3081,CT3082,CT3083
* Operating temperature range - 55 °C to 100 °C
* External Creepage ≥ 5.0mm
* Distance Through

Applications

* Motor Controls
* Lamp ballasts
* Static AC Power Switch
* Solenoid/ Valve Control Package Outline Schematic © 2022 CT MICRO INTERNATIONAL CORPORATION ALL RIGHTS RESERVED. Page 1 Rev.5 Nov, 2022 www. ct-micro. comN CTM3061, CTM3062, CTM3063 CTM3081, CTM3082, CTM3083 600V/800V Z
