CTM3082 - Phototriac Optocoupler

CT Micro

Download the CTM3082 datasheet PDF. This datasheet also covers the CTM3083 variant, as both devices belong to the same phototriac optocoupler family and are provided as variant models within a single manufacturer datasheet.

General Description

The CTM3061, CTM3062, CTM3063, CTM3081, CTM3082 and CTM3083 series consists of a Zero Cross Photo Triac optically coupled to an Infrared-emitting diode in a 4-lead Mini-Flat DMC-Isolator® package.

Motor Controls Lamp ballasts Static AC Power Switch Solenoid/ Valv

Key Features

High isolation 3750 VRMS.
Patented coplanar structure DMC-Isolator®.
Peak Breakdown Voltage.
600V.
CTM3061,CT3062,CT3063.
800V.
CTM3081,CT3082,CT3083.
Operating temperature range - 55 °C to 100 °C.
External Creepage ≥ 5.0mm.
Distance Through Isolation ≥ 0.4mm.
Clearance Distance ≥ 5.0mm.
RoHS and REACH Compliance.
Halogen Free Compliance.
MSL class 1.
Regulatory Approvals.
UL - UL1577 (E364000).

📥 Download Datasheet

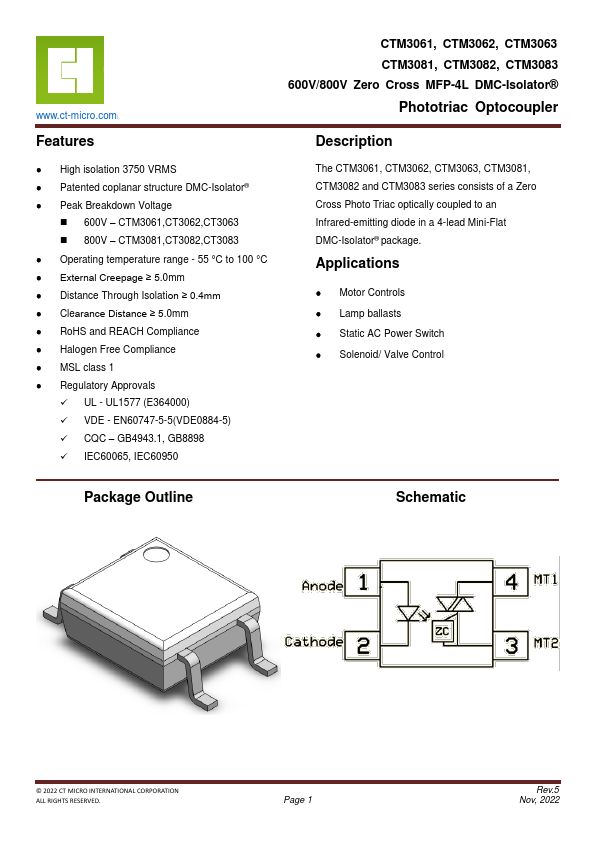

CTM3082 phototriac optocoupler by CT Micro - Datasheet Preview — Note: The manufacturer provides a single datasheet file (CTM3083-CTMicro.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	CTM3082
Manufacturer	CT Micro
File Size	1.19 MB
Description	Phototriac Optocoupler
Datasheet	CTM3082 Datasheet

Full PDF Text Transcription for CTM3082 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for CTM3082. For precise diagrams, and layout, please refer to the original PDF.

www.ct-micro.comN Features  High isolation 3750 VRMS  Patented coplanar structure DMC-Isolator®  Peak Breakdown Voltage  600V – CTM3061,CT3062,CT3063  800V – CTM3081...

View more extracted text

Peak Breakdown Voltage  600V – CTM3061,CT3062,CT3063  800V – CTM3081,CT3082,CT3083  Operating temperature range - 55 °C to 100 °C  External Creepage ≥ 5.0mm  Distance Through Isolation ≥ 0.4mm  Clearance Distance ≥ 5.0mm  RoHS and REACH Compliance  Halogen Free Compliance  MSL class 1  Regulatory Approvals  UL - UL1577 (E364000)  VDE - EN60747-5-5(VDE0884-5)  CQC – GB4943.
