Ultra-Low Noise Amplifier

No Preview Available !

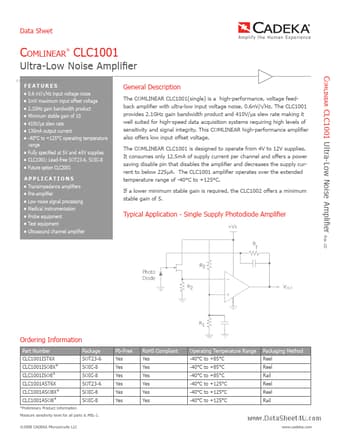

Data Sheet
Amplify the Human Experience
Comlinear® CLC1001
Ultra-Low Noise Amplifier
www.datasheet4u.com
FEATURES
n 0.6 nV/Hz input voltage noise
n 1mV maximum input offset voltage
n 2.1GHz gain bandwidth product
n Minimum stable gain of 10
n 410V/μs slew rate
n 130mA output current
n -40°C to +125°C operating temperature
range
n Fully specified at 5V and ±5V supplies
n CLC1001: Lead-free SOT23-6, SOIC-8
n Future option CLC2001
APPLICATIONS
n Transimpedance amplifiers
n Pre-amplifier
n Low noise signal processing
n Medical instrumentation
n Probe equipment
n Test equipment
n Ultrasound channel amplifier
General Description
The COMLINEAR CLC1001(single) is a high-performance, voltage feed-
back amplifier with ultra-low input voltage noise, 0.6nV/√Hz. The CLC1001
provides 2.1GHz gain bandwidth product and 410V/μs slew rate making it
well suited for high-speed data acquisition systems requiring high levels of
sensitivity and signal integrity. This COMLINEAR high-performance amplifier
also offers low input offset voltage.
The COMLINEAR CLC1001 is designed to operate from 4V to 12V supplies.
It consumes only 12.5mA of supply current per channel and offers a power
saving disable pin that disables the amplifier and decreases the supply cur-
rent to below 225μA. The CLC1001 amplifier operates over the extended
temperature range of -40°C to +125°C.
If a lower minimum stable gain is required, the CLC1002 offers a minimum
stable gain of 5.
Typical Application - Single Supply Photodiode Amplifier
Ordering Information
Part Number
Package
CLC1001IST6X
SOT23-6
CLC1001ISO8X*
SOIC-8
CLC1001ISO8*
SOIC-8
CLC1001AST6X
SOT23-6
CLC1001ASO8X*
SOIC-8
CLC1001ASO8*
SOIC-8
*Preliminary Product Information
Moisture sensitivity level for all parts is MSL-1.
©2008 CADEKA Microcircuits LLC
Pb-Free
Yes
Yes
Yes
Yes
Yes
Yes
RoHS Compliant
Yes
Yes
Yes
Yes
Yes
Yes
Operating Temperature Range
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
Packaging Method
Reel
Reel
Rail
Reel
Reel
Rail
www.cadeka.com




Cadeka

CLC1001 Datasheet Preview

CLC1001 Datasheet

Ultra-Low Noise Amplifier

No Preview Available !

Data Sheet
SOT23 Pin Configuration
OUT 1
-VS 2
+-
www.datasheet4u.com
+IN 3
6 +VS
5 DIS
4 -IN
SOT23 Pin Assignments
Pin No.
1
2
3
4
5
6
Pin Name
OUT
-VS
+IN
-IN
DIS
+VS
Description
Output
Negative supply
Positive input
Negative input
Disable. Enabled if pin is left floating or pulled
above VON, disabled if pin is grounded or pulled
below VOFF.
Positive supply
SOIC Pin Configuration
NC 1
-IN1 2
+IN1
-VS
3
4
8 DIS
7 +VS
6 OUT
5 NC
SOIC Pin Assignments
Pin No.
1
2
3
4
5
6
7
8
Pin Name
NC
-IN1
+IN1
-VS
NC
OUT
+VS
DIS
Description
No connect
Negative input
Positive input
Negative supply
No connect
Output
Positive supply
Disable. Enabled if pin is left floating or pulled
above VON, disabled if pin is grounded or pulled
below VOFF.
©2007-2008 CADEKA Microcircuits LLC
www.cadeka.com 2
