1N5294, 1N5283 Datasheet - Central Semiconductor

1N5294, 1N5283, SILICON CURRENT LIMITING DIODE

The CENTRAL SEMICONDUCTOR 1N5283 series types are silicon field effect current regulator diodes designed for applications requiring a constant current over a wide voltage range. These devices are manufactured in the cost effective DO-35 double plug case which provides many benefits to the user, inc.

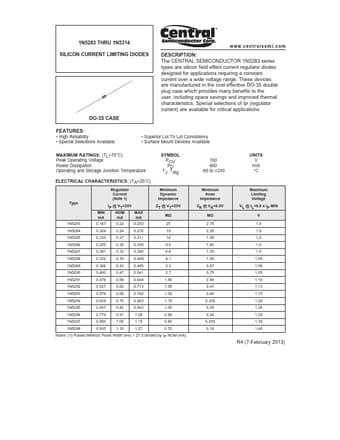

Datasheet Preview Page 1

1N5283-CentralSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 1N5294, 1N5283. Please refer to the document for exact specifications by model.
1N5294 Datasheet Preview Page 2 1N5294 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5294, 1N5283

Manufacturer:

Central Semiconductor ↗

File Size:

410.35 KB

Description:

SILICON CURRENT LIMITING DIODE

Note:

This datasheet PDF includes multiple part numbers: 1N5294, 1N5283.
Please refer to the document for exact specifications by model.

1N5294 Features

* High Reliability

* Special Selections Available

* Superior Lot To Lot Consistency

* Surface Mount Devices Available MAXIMUM RATINGS: (TL=75°C) Peak Operating Voltage Power Dissipation Operating and Storage Junction Temperature SYMBOL POV PD TJ, Tstg ELECTRICAL
