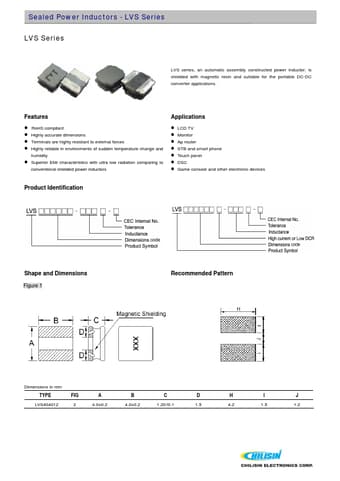

Features - Ro HS pliant - Highly accurate dimensions - Terminals are highly resistant to external forces - Highly reliable in environments of sudden temperature change and humidity - Superior EMI characteristics with ultra low radiation paring to conventional shielded power inductors Applications - LCD TV - Monitor - Ap router - STB and smart phone - Touch panel - DSC - Game console and other electronic devices Product Identification Shape and Dimensions Figure 1 Remended Pattern Dimensions in mm TYPE LVS404012 FIG 2 A 4.0±0.2 B 4.0±0.2 C 1.20±0.1 D 1.5 H 4.2 I 1.5 J 1.2 Sealed Power Inductors - LVS Series Shape and Dimensions Figure 2 Remended Pattern Dimensions in mm TYPE LVS404018 LVS404026 LVS606028 FIG 2 2 2 A 4.0±0.2 4.0±0.2 6.0±0.2 B 4.0±0.2 4.0±0.2 6.0±0.2 1.8 C +0.2 -0.30 D 1.3±0.3 1.4 1.9±0.3 H 3.7 3.7 5.7 I 1.2 1.2 1.6 J 1.6 1.6 2.9 2.6±0.2 2.8 +0.2 -0.30 Shape and Dimensions Figure 3 Remended Pattern Dimensions in mm TYPE LVS505020 LVS505040 LVS606020 LVS606045 LVS606045L LVS808040 LVS808040L FIG 3 3 3 3 3 3 3 A 5.0±0.2 5.0±0.2 6.0±0.2 6.0±0.2 6.0±0.2 8.0±0.2 8.0±0.2 B 5.0±0.2 5.0±0.2 6.0±0.2 6.0±0.2 6.0±0.2 8.0±0.2 8.0±0.2 2.0 4.0 2.0 4.5 4.5 4.0 4.0 C +0.2 -0.30 +0.2 -0.30 +0.2 -0.30 +0.2 -0.30 +0.2 -0.30 +0.2 -0.30 +0.2 -0.30 D 1.8±0.3 1.6±0.3 1.7±0.3 1.8±0.3 1.8±0.3 2.3±0.3 2.3±0.3 H 4.0 4.0 5.7 5.7 5.7 7.5 7.5 I 1.5 1.5 1.6 2.0 2.0 2.5...
