CS43198 - 32-Bit High-Performance DAC

Description

The CS43198 is a high-performance, 32-bit resolution, stereo audio DAC that supports up to 384-kHz sampling frequency with pseudodifferential analog outputs.

The advanced 32-bit oversampled multibit modulator with mismatch shaping technology eliminates distortion due to on-chip component mismatch.

Features

  • Direct Stream Digital (DSD®) path.
  • Enhanced  oversampling DAC architecture.
  • Up to 256.
  • Fs DSD.
  • 32-bit resolution.
  • Patented DSD processor.
  • Up to 384-kHz sampling rate.
  • Low clock jitter sensitivity.
  • Auto mute detection.
  • Integrated high performance outputs.
  • 130-dB dynamic range (A-weighted).
  • 115-dB total harmonic distortion + noise (THD+N).
  • On-chip 50-kHz filter to m.

📥 Download Datasheet

Datasheet preview – CS43198

Datasheet Details

Part number CS43198
Manufacturer Cirrus Logic
File Size 4.68 MB
Description 32-Bit High-Performance DAC
Datasheet download datasheet CS43198 Datasheet
Additional preview pages of the CS43198 datasheet.

📁 Similar Datasheet

  • CS4310U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4312G - Rectifier Diode (High Voltage Power Solutions)
  • CS4312U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4314U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4302U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4303 - D/A Converter (Crystal Semiconductor)
  • CS4303U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4304U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4308U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4309G - (CS4300G Series) Rectifier Diode (High Voltage Power Solutions)
Other Datasheets by Cirrus Logic
  • CS43122 - 192kHz DAC for Digital Audio
  • CS43130 - 32-Bit High-Performance DAC
  • CS43131 - 32-Bit High-Performance DAC
  • CS4302P - High Performance Stereo Audio DAC
  • CS4304P - High Performance Multichannel Audio DAC
  • CS4308P - High Performance Multichannel Audio DAC
  • CS4334 - Stereo D/A Converter
  • CS4335 - Stereo D/A Converter

Full PDF Text Transcription

Click to expand full text

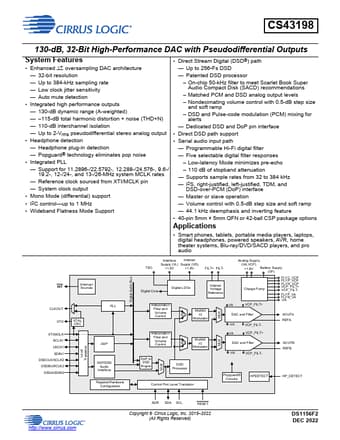

CS43198 130-dB, 32-Bit High-Performance DAC with Pseudodifferential Outputs System Features • Direct Stream Digital (DSD®) path • Enhanced  oversampling DAC architecture — Up to 256•Fs DSD — 32-bit resolution — Patented DSD processor — Up to 384-kHz sampling rate — Low clock jitter sensitivity — Auto mute detection • Integrated high performance outputs — 130-dB dynamic range (A-weighted) — –115-dB total harmonic distortion + noise (THD+N) – On-chip 50-kHz filter to meet Scarlet Book Super Audio Compact Disk (SACD) recommendations – Matched PCM and DSD analog output levels – Nondecimating volume control with 0.
