S6J337AHUBSE20000 - 32-bit T1G Microcontroller

This page provides the datasheet information for the S6J337AHUBSE20000, a member of the S6J3360 32-bit T1G Microcontroller family.

Description

15 5.1 Pin Descriptions 15 5.2 I/O Circuit Type 55 5.3 Input Level Setting/ Output Drive Capacity Setting60 6.

Block Diagram 68 7.

Features

  • Key Features.
  • 32-bit Arm® Cortex®-R5F CPU core at up to 132 MHz.
  • 80-MHz internal flash memory access speed.
  • Flash memory size (max)  TC-Flash: 2,112 KB/ Work-Flash: 112 KB.
  • RAM size (max)  TC-RAM: 128 KB/ System -RAM: 128 KB (this includes 16 KB + 8 KB back-up area).
  • 5 V or 3.3 V power supply voltage.
  • Packages  LQFP packages (144-pin)  TEQFP packages (176-pin/144-pin).
  • ASIL-B support for ISO 26262 specification.
  • CMOS 40-nm technology.
  • JTAG debug in.

📥 Download Datasheet

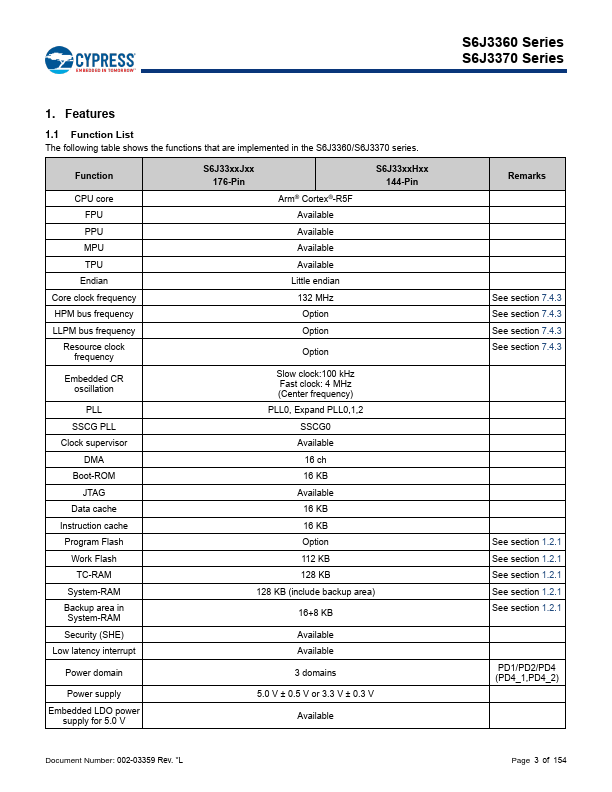

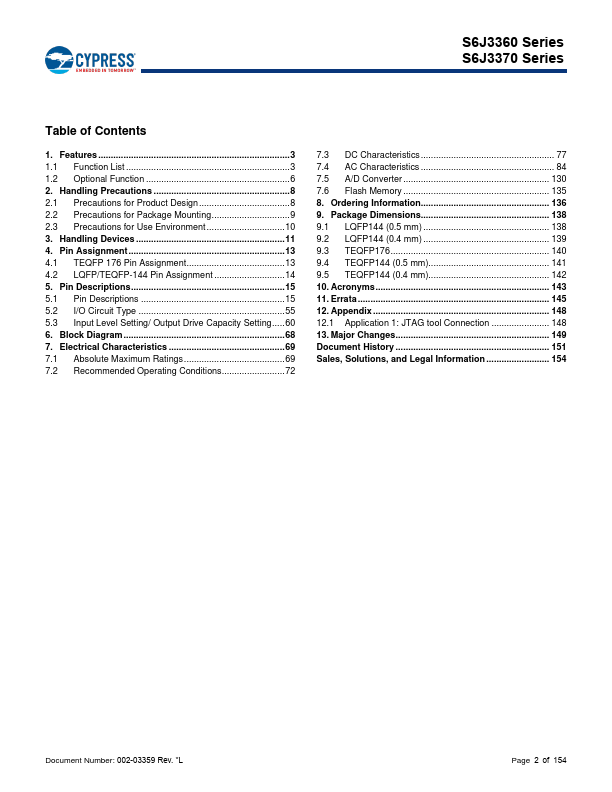

Datasheet preview – S6J337AHUBSE20000

📁 Similar Datasheet

Other Datasheets by Cypress

Full PDF Text Transcription

Click to expand full text
S6J3360 Series S6J3370 Series 32-bit Arm® Cortex®-R5F TRAVEO™ T1G Microcontroller S6J3360/70 is a series of Automotive Cluster applications in general meter control to connect to the driver as speed meter, tachometer, temperature meter, and fuel meter. This embedded device enables next-generation functions such as Controller Area Network with Flexible Data rate (CAN FD) and Secure Hardware Extension (SHE). MCUs for this application require an operating temperature range of TA -40 °C to 105 °C and Automotive Electronics Council (AEC) qualification.
