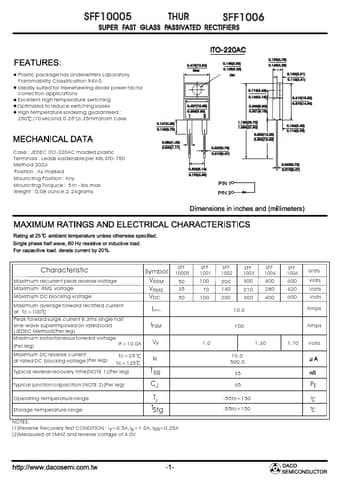

SFF10005
THUR
SFF1006
SUPER FAST GLASS PASSIVATED RECTIFIERS
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Idedlly suited for freewheeling diode power factor correction applications Excellent high temperature switching Optimized to reduce switching losses High temperature soldering guaranteed : 250 /10 second,0.25"(6.35mm)from case
Case : JEDEC ITO-220AC molded plastic Terminals : Leads solderable per MIL-STD-750 Method 2026 Position : As marked Mouncting Position : Any Mouncting Torquce : 5 in - lbs.max Weight : 0.08 ounce,2.24grams
ITO-220AC
0.415(10.54) Max
0.145(3.55) 0.128(3.25)
DIA
0.190(4.75) 0.165(4.25)
0.130(3.31) 0.110(2.81)
0.167(4.25) 0.148(3.75)
0.407(10.35)
0.388(9.85)
13
0.056(1.43) 0.046(1.17)
0.029(0.73) 0.019(0.47)
0.174(4.
