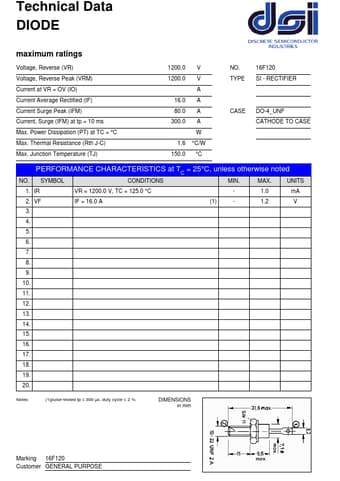

Technical Data DIODE
maximum ratings
Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ)
1200.0 V
1200.0 V
empty
A
16.0 A
80.0 A
300.0 A
empty
W
1.6 °C/W
150.0 °C
NO. TYPE empty empty CASE empty empty
16F120 SI - RECTIFIER empty empty DO-4_UNF CATHODE TO CASE empty
PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted
C
NO. SYMBOL
CONDITIONS
MIN.
MAX.
UNITS
1. IR
VR = 1200.0 V, TC = 125.0 °C
- 1.0 mA
2. VF
IF = 16.0 A
(1) - 1.2 V
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
16F120 Datasheet
