FFB03812VHN - 38 x 38 x 28 MM SERIES DC FAN

Download the FFB03812VHN datasheet PDF (FFB03812HN included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 38 x 38 x 28 mm series dc fan.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FFB03812HN-Delta.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FFB03812VHN
Manufacturer Delta
File Size 855.85 KB
Description 38 x 38 x 28 MM SERIES DC FAN
Datasheet download datasheet FFB03812VHN Datasheet

📁 Similar Datasheet

  • FFB05U120S - ULTRA FAST RECOVERY POWER RECTIFIER (Fairchild Semiconductor)
  • FFB06U40S - ULTRA FAST RECOVERY RECTIFIER (Fairchild Semiconductor)
  • FFB10U120S - ULTRA FAST RECOVERY POWER RECTIFIER (Fairchild Semiconductor)
  • FFB10U20S - ULTRA FAST RECOVERY POWER RECTIFIER (Fairchild Semiconductor)
  • FFB10UP20S - Ultrafast Recovery Power Rectifier (Fairchild Semiconductor)
  • FFB1748HHG - 172 x 50.8MM SERIES FAN (deltaww)
  • FFB1748SHG - 172 x 50.8MM SERIES FAN (deltaww)
  • FFB1748VHG - 172 x 50.8MM SERIES FAN (deltaww)
  • FFB20U20S - ULTRA FAST RECOVERY POWER RECTIFIER (Fairchild Semiconductor)
  • FFB20U60S - ULTRA FAST RECOVERY POWER RECTIFIER (Fairchild Semiconductor)
Other Datasheets by Delta

Full PDF Text Transcription

Click to expand full text

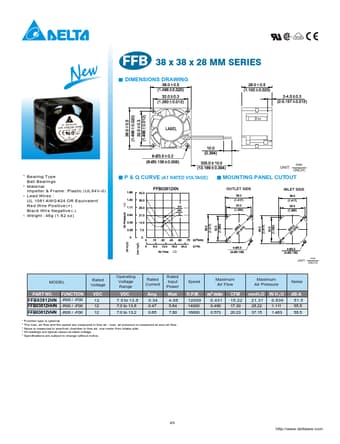

New FFB 38 x 38 x 28 MM SERIES DIMENSIONS DRAWING LABEL * Bearing Type Ball Bearings * Material Impeller & Frame : Plastic (UL94V-0) * Lead Wires : UL 1061 AWG #24 OR Equivalent Red Wire Positive (+) Black Wire Negative (-) * Weight : 46g (1.62 oz) P & Q CURVE (AT RATED VOLTAGE) mm UNIT: (INCH) MOUNTING PANEL CUTOUT OUTLET SIDE INLET SIDE mm UNIT: (INCH) MODEL PART NO. FFB03812HN FFB03812HHN FFB03812VHN FUNCTION -R00 / -F00 -R00 / -F00 -R00 / -F00 Rated Voltage VDC 12 12 12 Operating Voltage Range VDC 7.0 to 13.8 7.0 to 13.8 7.0 to 13.2 Rated Current Amp 0.34 0.47 0.65 Rated Input Power Watt 4.08 5.64 7.80 * Function type is optional. * The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
