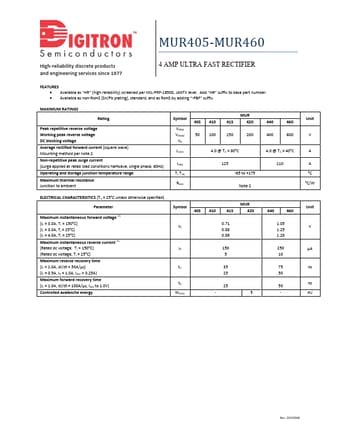

4 AMP ULTRA FAST RECTIFIER

No Preview Available !

MUR405-MUR460
High-reliability discrete products
and engineering services since 1977
4 AMP ULTRA FAST RECTIFIER
FEATURES
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
MAXIMUM RATINGS
Rating
Peak repetitive reverse voltage
Working peak reverse voltage
DC blocking voltage
Average rectified forward current (square wave)
Mounting method per note 2
Non-repetitive peak surge current
(surge applied at rated load conditions halfwave, single phase, 60Hz)
Operating and storage junction temperature range
Maximum thermal resistance
Junction to ambient
Symbol
VRRM
VRWM
VR
IF(AV)
405
50
MUR
410 415
420
100 150
200
4.0 @ TA = 80°C
IFSM
TJ, Tstg
RӨJA
125
-65 to +175
Note 2
440 460
400 600
4.0 @ TA = 40°C
110
ELECTRICAL CHARACTERSITICS (TA = 25°C unless otherwise specified)
Parameter
Maximum instantaneous forward voltage (1)
(IF = 3.0A, TJ = 150°C)
(IF = 3.0A, TJ = 25°C)
(IF = 4.0A, TJ = 25°C)
Maximum instantaneous reverse current (1)
(Rated dc voltage, TJ = 150°C)
(Rated dc voltage, TJ = 25°C)
Maximum reverse recovery time
(IF = 1.0A, di/dt = 50A/µs)
(IF = 0.5A, IR = 1.0A, IREC = 0.25A)
Maximum forward recovery time
(IF = 1.0A, di/dt = 100A/µs, IREC to 1.0V)
Controlled avalanche energy
Symbol 405
VF
IR
trr
tfr
WAVAL
MUR
410 415
420
0.71
0.88
0.89
150
5
35
25
25
-
5
440 460
1.05
1.25
1.28
250
10
75
50
50
-
Unit
V
A
A
°C
°C/W
Unit
V
µA
ns
ns
mJ
Rev. 20150306




Digitron Semiconductors

MUR405 Datasheet Preview

MUR405 Datasheet

4 AMP ULTRA FAST RECTIFIER

No Preview Available !

High-reliability discrete products
and engineering services since 1977
MECHANICAL CHARACTERISTICS
Case DO-201A
Marking
Body painted, alpha-numeric
Polarity
Cathode band
MUR405-MUR460
4 AMP ULTRA FAST RECTIFIER
Rev. 20150306


Part Number MUR405
Description 4 AMP ULTRA FAST RECTIFIER
Maker Digitron Semiconductors
PDF Download
