APR346 - SECONDARY SIDE SYNCHRONOUS RECTIFICATION CONTROLLER

Description

The APR346 is a secondary side MOSFET driver for synchronous rectification, supports CCM, DCM and Quasi-Resonant Flyback Topologies.

The synchronous rectification can effectively reduce the secondary side rectifier power dissipation and provide high performance solution.

Features

  • Synchronous Rectification for CCM, DCM Operation Flyback.
  • Eliminate Resonant Ring Interference.
  • Fewest External Components.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) SOT26.

📥 Download Datasheet

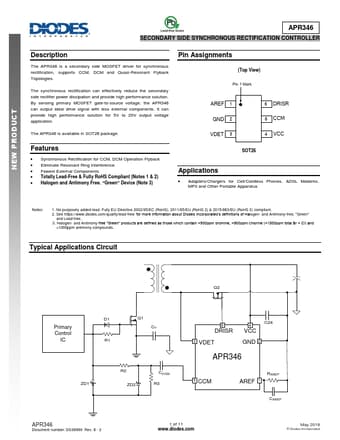

Datasheet preview – APR346

Datasheet Details

Part number APR346
Manufacturer DIODES
File Size 367.62 KB
Description SECONDARY SIDE SYNCHRONOUS RECTIFICATION CONTROLLER
Datasheet download datasheet APR346 Datasheet
