B260Q - SCHOTTKY BARRIER RECTIFIER

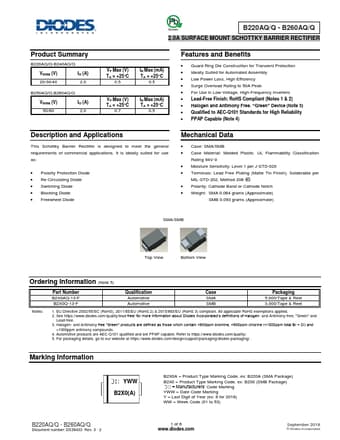

Download the B260Q datasheet PDF (B260AQ included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for schottky barrier rectifier.

Description

This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications.

Polarity Protection Diode Re-Circulating Diode Switching Diode Blocking Diode Freewheel Diode Mechanical Data

Features

  • Guard Ring Die Construction for Transient Protection.
  • Ideally Suited for Automated Assembly.
  • Low Power Loss, High Efficiency.
  • Surge Overload Rating to 50A Peak.
  • For Use in Low-Voltage, High-Frequency Inverters.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B260AQ-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • B260 - 2 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)
  • B260 - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B260 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • B260A - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B260A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
  • B260A - Schottky Barrier Rectifier (Kexin)
  • B260A - SCHOTTKY BARRIER RECTIFIERS (TASUND)
  • B260A - Surface Mount Schottky Barrier Rectifiers (LGE)
  • B260D - TDA1060 (Tesla)
  • B260W-S - 2A Surface Mount Schottky Barrier Rectifiers (CITC)
Other Datasheets by Diodes
  • B260AE - 2.0A SCHOTTKY BARRIER RECTIFIER
  • B260AF - 2.0A SCHOTTKY BARRIER RECTIFIER
  • B260AQ - SCHOTTKY BARRIER RECTIFIER
  • B260AX - 2A TRENCH SCHOTTKY BARRIER RECTIFIER
  • B260BE - 2.0A SCHOTTKY BARRIER RECTIFIER
  • B260S1FX - 2A TRENCH SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
Green B220AQ/Q - B260AQ/Q 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Product Summary B220AQ/Q-B240AQ/Q VRRM (V) 20/30/40 IO (A) 2.0 B250AQ/Q,B260AQ/Q VRRM (V) 50/60 IO (A) 2.0 VF Max (V) TA = +25°C 0.5 IR Max (mA) TA = +25°C 0.5 VF Max (V) TA = +25°C 0.7 IR Max (mA) TA = +25°C 0.5 Features and Benefits  Guard Ring Die Construction for Transient Protection  Ideally Suited for Automated Assembly  Low Power Loss, High Efficiency  Surge Overload Rating to 50A Peak  For Use in Low-Voltage, High-Frequency Inverters  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
