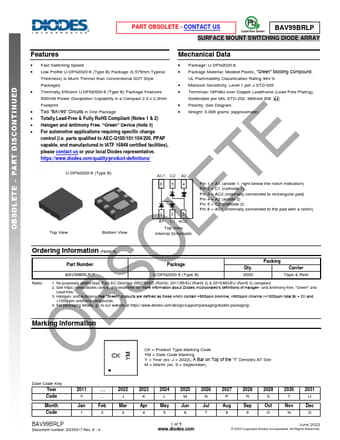

BAV99BRLP Datasheet

SURFACE MOUNT SWITCHING DIODE ARRAY

No Preview Available !

BAV99BRLP pdf
www.DataSheet.co.kr
Features
Fast Switching Speed
Low Profile DFN Package (0.575mm typical thickness) is Much
Thinner than Conventional SOT Style Packages
Thermally Efficient DFN Package Features 500mW Power
Dissipation Capability in a Compact 2.0 * 2.0mm Footprint
Two “BAV99” Circuits In One Package
Lead Free/RoHS Compliant (Note 1)
"Green" Device (Note 2)
BAV99BRLP
SURFACE MOUNT SWITCHING DIODE ARRAY
Mechanical Data
Case: DFN2020B-6
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe (Lead Free Plating).
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (approximate)
DFN2020B-6
Top View
Bottom View
AC1 C2 A2
654
123
A1 C1 AC2
Top View
Internal Schematic
Pin 1 = A1 (anode 1, right below the
notch indication)
Pin 2 = C1 (cathode 1)
Pin 3 = AC2 (internally connected to
rectangular pad)
Pin 4 = A2 (anode 2)
Pin 5 = C2 (cathode 2)
Pin 6 = AC1 (internally connected to
the pad with a notch)
Ordering Information (Note 3)
Notes:
Part Number
BAV99BRLP-7
Case
DFN2020B-6
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.
Packaging
3000/Tape & Reel
Marking Information
CK = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2011
Y
Jan Feb
12
2012
Z
Mar
3
2013
A
Apr May
45
2014
B
Jun Jul
67
2015
C
Aug
8
Sep
9
2016
D
Oct
O
2017
E
Nov Dec
ND
BAV99BRLP
Document number: DS35317 Rev. 4 - 2
1 of 4
www.diodes.com
July 2011
© Diodes Incorporated
Datasheet
pdf
-


Diodes Semiconductor Electronic Components Datasheet

BAV99BRLP Datasheet

SURFACE MOUNT SWITCHING DIODE ARRAY

No Preview Available !

BAV99BRLP pdf
www.DataSheet.co.kr
BAV99BRLP
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 4)
Non-Repetitive Peak Forward Surge Current
@ t = 1.0μs
@ t = 1.0ms
@ t = 1.0s
Symbol
VRM
VRRM
VRWM
VR
VR(RMS)
IFM
IFSM
Value
100
75
53
300
3.0
2.0
0.5
Unit
V
V
V
mA
A
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating and Storage Temperature Range
(Note 4)
(Note 4)
Symbol
PD
RθJA
TJ , TSTG
Value
500
250
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics @TA = 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 5)
Symbol
V(BR)R
Min
75
Forward Voltage
VF
Reverse Current (Note 5)
IR
Total Capacitance
Reverse Recovery Time
CT
trr
Notes:
4. Device mounted on FR-4 PCB, on minimum recommended, 2oz copper pad layout.
5. Short duration pulse test used to minimize self-heating effect.
Max
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
V
μA
μA
μA
nA
pF
ns
Test Condition
IR = 2.5μA
IF = 1.0mA
IF = 10mA
IF = 50mA
IF = 150mA
VR = 75V
VR = 75V, TJ = 150°C
VR = 20V, TJ = 150°C
VR = 20V
VR = 0, f = 1.0MHz
IF = IR = 10mA,
Irr = 0.1 x IR, RL = 100Ω
BAV99BRLP
Document number: DS35317 Rev. 4 - 2
2 of 4
www.diodes.com
July 2011
© Diodes Incorporated
Datasheet pdf - http://www.DataSheet4U.net/


Part Number BAV99BRLP
Description SURFACE MOUNT SWITCHING DIODE ARRAY
Maker Diodes
Total Page 4 Pages
PDF Download
BAV99BRLP pdf
BAV99BRLP Datasheet PDF
[partsNo] view html
View PDF for Mobile
