BZT52C18S - SURFACE MOUNT ZENER DIODE

Download the BZT52C18S datasheet PDF. This datasheet also covers the BZT52C2V0S variant, as both devices belong to the same surface mount zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Planar Die Construction.
  • Small Surface Mount Package.
  • Ideally Suited for Automated Assembly Processes.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Notes 3 & 4).
  • Qualified to AEC-Q101 Standards for High Reliability BZT52C2V0S - BZT52C39S.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZT52C2V0S-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZT52C18S 200mW Zener Diode MCC
BZT52C18S 200mW SURFACE MOUNT ZENER DIODE WON-TOP
BZT52C18S Surface Mount Zener Diodes GOOD-ARK
BZT52C18S SURFACE MOUNT SILICON ZENER DIODES CDIL
BZT52C18S Surface Mount Zener Diodes Kexin

Other Datasheets by Diodes Incorporated

Part Number Description
BZT52C18 SURFACE MOUNT ZENER DIODE
BZT52C10 SURFACE MOUNT ZENER DIODE
BZT52C10S SURFACE MOUNT ZENER DIODE
BZT52C11 SURFACE MOUNT ZENER DIODE
BZT52C11S SURFACE MOUNT ZENER DIODE

Full PDF Text Transcription

Click to expand full text

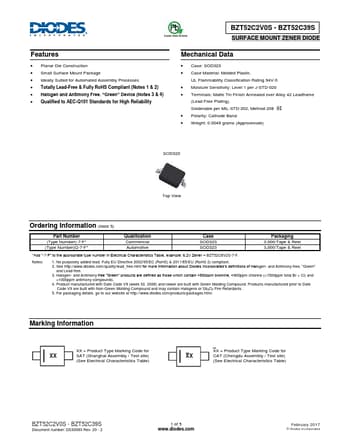

Features  Planar Die Construction  Small Surface Mount Package  Ideally Suited for Automated Assembly Processes  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Notes 3 & 4)  Qualified to AEC-Q101 Standards for High Reliability BZT52C2V0S - BZT52C39S SURFACE MOUNT ZENER DIODE Mechanical Data  Case: SOD323  Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.
