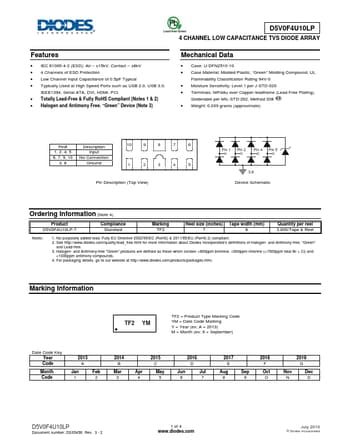

D5V0F4U10LP - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Description

Input No Connection Ground 10 9 8 7 6 1 23 4 5 Pin Description (Top View) Pin 1 Pin 2 Pin 4 Pin 5 3,8 Device Schematic Ordering Information (Note 4) Product D5V0F4U10LP-7 Complian

Features

  • IEC 61000-4-2 (ESD): Air.
  • ±15kV, Contact.
  • ±8kV.
  • 4 Channels of ESD Protection.
  • Low Channel Input Capacitance of 0.5pF Typical.
  • Typically Used at High Speed Ports such as USB 2.0, USB 3.0, IEEE1394, Serial ATA, DVI, HDMI, PCI.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) D5V0F4U10LP 4.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Diodes
  • D5V0F4U10MR - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
  • D5V0F4U5P5 - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
  • D5V0F4U6S - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
  • D5V0F4U6SO - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
  • D5V0F4U6V - 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
  • D5V0F1U2LP - 1 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
  • D5V0F1U2LP3 - LOW CAPACITANCE UNIDIRECTIONAL TVS DIODE
  • D5V0F1U2S9 - LOW CAPACITANCE UNIDIRECTIONAL TVS DIODE

Full PDF Text Transcription

Click to expand full text
Features  IEC 61000-4-2 (ESD): Air – ±15kV, Contact – ±8kV  4 Channels of ESD Protection  Low Channel Input Capacitance of 0.5pF Typical  Typically Used at High Speed Ports such as USB 2.0, USB 3.0, IEEE1394, Serial ATA, DVI, HDMI, PCI  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) D5V0F4U10LP 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY Mechanical Data  Case: U-DFN2510-10  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: NiPdAu over Copper leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 e4  Weight: 0.
