DESD2CAN2SOQ - CAN BUS ESD PROTECTION DIODE

Description

This DESD2CAN2SOQ is a next generation ESD and surge protection device packaged in a small footprint surface mount package.

It is qualified to AEC-Q101, supported by a PPAP and is designed to protect two data lines of the Controller Area Network (CAN) in an automotive.

CAN Bu

Features

  • 230 W Peak Power Dissipation per Line (8/20µs Waveform).
  • Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV.
  • 2 Channels of ESD Protection.
  • Low Channel Input Capacitance.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DESD12V0S1BL TVS Diode Leiditech
DESD3V3S1BL-7B TVS Diode Leiditech
DESD5V0S1BL-7B TVS Diode Leiditech
DESD5V0U1BL-7B TVS Diode Leiditech
DES-1008D 8-Port 10/100Mbps Switch Manual D-Link

Other Datasheets by Diodes Incorporated

Part Number Description
DESD24VF1BLQ 24V ULTRA-LOW CAPACITANCE BI-DIRECTIONAL TVS DIODE
DESD24VS2SO 24V CAN/LIN BUS PROTECTOR
DESD24VS5U6SOQ FIVEFOLD ESD PROTECTION DIODE ARRAYS
DESD12V0S1BL LOW CAPACITANCE BIDIRECTIONAL TVS DIODE
DESD1CAN2SOQ CAN BUS ESD PROTECTION DIODE

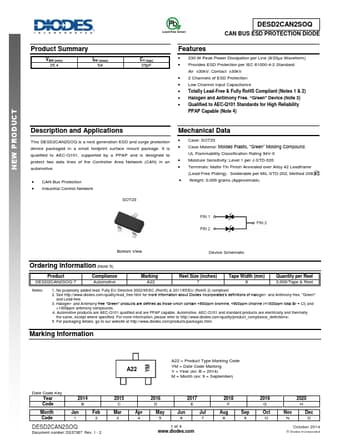

Full PDF Text Transcription

Click to expand full text
NAEDWVPARNOCDEUICNTF O R M A T I O N Product Summary VBR (min) 25.4 IPP (max) 5A CT (typ) 25pF DESD2CAN2SOQ CAN BUS ESD PROTECTION DIODE Features  230 W Peak Power Dissipation per Line (8/20µs Waveform)  Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV  2 Channels of ESD Protection  Low Channel Input Capacitance  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Description and Applications This DESD2CAN2SOQ is a next generation ESD and surge protection device packaged in a small footprint surface mount package.
