DMN3023L - N-Channel MOSFET

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

Load Switch DC-DC Converters Power Management Functions DMN3023

Features

  • Low On-Resistance.
  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Low Input/Output Leakage.
  • ESD Protected Gate.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOT23.
  • Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
  • Moisture.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text

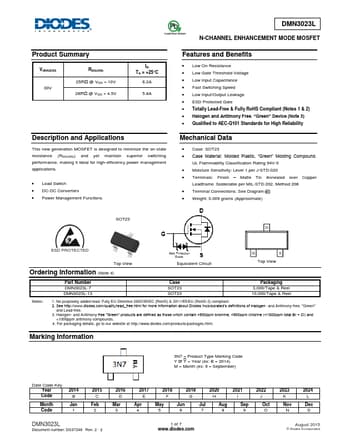

ADVANCED INNEFWORPRMOATDIUOCNT Product Summary V(BR)DSS 30V RDS(ON) 25mΩ @ VGS = 10V 28mΩ @ VGS = 4.5V ID TA = +25°C 6.2A 5.8A Description and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.  Load Switch  DC-DC Converters  Power Management Functions DMN3023L N-CHANNEL ENHANCEMENT MODE MOSFET Features and Benefits  Low On-Resistance  Low Gate Threshold Voltage  Low Input Capacitance  Fast Switching Speed  Low Input/Output Leakage  ESD Protected Gate  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
