DMP2066UFDE - P-Channel MOSFET

Datasheet Summary

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

  • 0.6mm Profile.
  • ideal for Low Profile.

📥 Download Datasheet

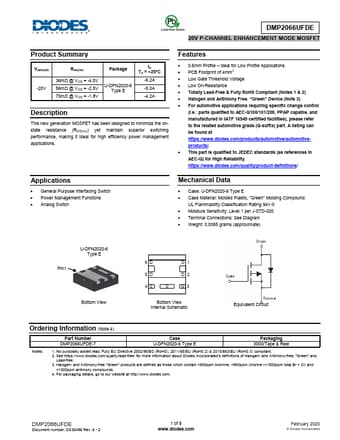

Datasheet preview – DMP2066UFDE

Datasheet Details

Part number DMP2066UFDE
Manufacturer DIODES
File Size 458.02 KB
Description P-Channel MOSFET
Datasheet download datasheet DMP2066UFDE Datasheet
Additional preview pages of the DMP2066UFDE datasheet.

📁 Similar Datasheet

  • DMP2012SN - P-Channel MOSFET (Diodes Incorporated)
  • DMP2022LSS-13 - P-Channel 20V MOSFET (VBsemi)
  • DMP21D5UFB4 - P-Channel MOSFET (Diodes Incorporated)
  • DMP2305UQ-7 - P-Channel MOSFET (VBsemi)
  • DMP-BD755P - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GA - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GC - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GN - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GT - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GW - Blu-ray Disc Player Service Manual (Panasonic)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
DMP2066UFDE 20V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS -20V RDS(ON) Package 36mΩ @ VGS = -4.5V 56mΩ @ VGS = -2.5V 75mΩ @ VGS = -1.8V U-DFN2020-6 Type E ID TA = +25°C -6.2A -5.0A -4.2A Description This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) yet maintain superior switching performance, making it ideal for high efficiency power management applications. Features • 0.6mm Profile – ideal for Low Profile Applications • PCB Footprint of 4mm2 • Low Gate Threshold Voltage • Low On-Resistance • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • For automotive applications requiring specific change control (i.e.
