LMV331 - GENERAL PURPOSE LOW VOLTAGE COMPARATOR

Description

The LMV331/LMV393 series are low-voltage, (2.7V to 5.5V) single and dual comparators, which are designed to effectively reduce cost and space at low-voltage levels.

Features

  • Guaranteed 2.7V and 5.5V performance.
  • Operating temperature range (-40°C to +125°C).
  • Low supply current 40 µA/comparator Typ.
  • Input Common Mode Voltage Range includes ground.
  • Open Collector Output for Maximums Flexibility.
  • SOT353, SOT25, MSOP-8, SO-8: Available in “Green” Moldin.

📥 Download Datasheet

📁 Similar Datasheet

  • LMV331 - Quad General-purpose Low-voltage Comparators (Texas Instruments)
  • LMV331 - Low Voltage Comparators (ON Semiconductor)
  • LMV331 - General Purpose / Low Voltage / TinyPack Comparators (National Semiconductor)
  • LMV331 - General-purpose low voltage comparators (STMicroelectronics)
  • LMV331-N - Tiny Pack Comparators (Texas Instruments)
  • LMV331-Q1 - GENERAL-PURPOSE LOW-VOLTAGE COMPARATORS (Texas Instruments)
  • LMV331TP - Open-Drain Output Comparators (3PEAK)
  • LMV339 - Low Voltage Comparators (ON Semiconductor)
  • LMV339 - Quad General-purpose Low-voltage Comparators (Texas Instruments)
  • LMV339 - General Purpose / Low Voltage / TinyPack Comparators (National Semiconductor)
Other Datasheets by Diodes
  • LMV321 - RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS
  • LMV324 - RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS
  • LMV358 - RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS
  • LMV393 - GENERAL PURPOSE LOW VOLTAGE COMPARATOR

Full PDF Text Transcription

Click to expand full text

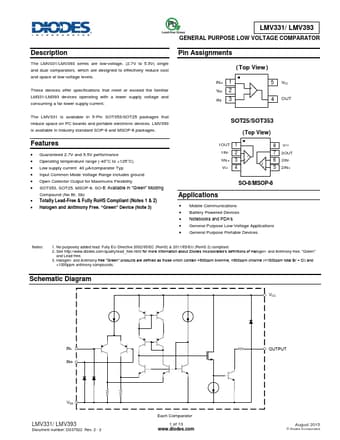

ADVANCED INFORMATION LMV331/ LMV393 GENERAL PURPOSE LOW VOLTAGE COMPARATOR Description The LMV331/LMV393 series are low-voltage, (2.7V to 5.5V) single and dual comparators, which are designed to effectively reduce cost and space at low-voltage levels. These devices offer specifications that meet or exceed the familiar LM331/LM393 devices operating with a lower supply voltage and consuming a far lower supply current. Pin Assignments ( Top View ) IN+ 1 5 VCC VEE 2 - IN- 3 4 OUT + + + The LMV331 is available in 5-Pin SOT353/SOT25 packages that reduce space on PC boards and portable electronic devices. LMV393 is available in industry standard SOP-8 and MSOP-8 packages. Features  Guaranteed 2.7V and 5.
