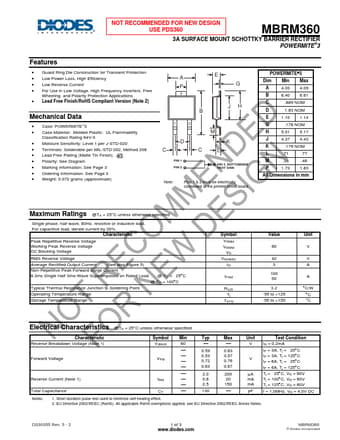

MBRM360
MBRM360 is 3A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER manufactured by Diodes Incorporated.
Features
- Guard Ring Die Construction for Transient Protection
- Low Power Loss, High Efficiency
- Low Reverse Current
- For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
- Lead Free Finish/Ro HS pliant Version (Note 2)
Mechanical Data
- Case: POWERMITE®3
- Case Material: Molded Plastic: UL Flammability
Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Solderable per MIL-STD-202, Method 208
- Lead Free Plating (Matte Tin Finish).
- Polarity: See Diagram
- Marking Information: See Page 3
- Ordering Information: See Page 3
- Weight: 0.072 grams (approximate)
AE PG
JH B
PIN 1 PIN 2
PIN 3, BOTTOMSIDE HEAT SINK
Note:
Pins 1 & 2 must be electrically connected at the printed circuit board.
POWERMITE®3 Dim Min Max
A 4.03 4.09 B 6.40 6.61...
