MMBZ5223BT - 150mW SURFACE MOUNT ZENER DIODE

This page provides the datasheet information for the MMBZ5223BT, a member of the MMBZ5221BT 150mW SURFACE MOUNT ZENER DIODE family.

Datasheet Summary

Features

  • Ultra-Small Surface Mount Package.
  • Planar Die Construction.
  • General Purpose.
  • Ideally Suited for Automated Assembly Processes.
  • Lead Free/RoHS Compliant (Note 2).
  • "Green" Device (Note 3 and 4) MMBZ5221BT - MMBZ5259BT 150mW.

📥 Download Datasheet

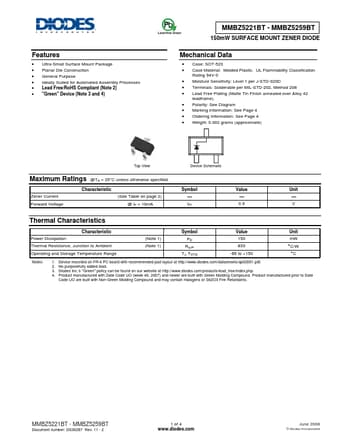

Datasheet preview – MMBZ5223BT

Datasheet Details

Part number MMBZ5223BT
Manufacturer DIODES
File Size 86.62 KB
Description 150mW SURFACE MOUNT ZENER DIODE
Datasheet download datasheet MMBZ5223BT Datasheet
Additional preview pages of the MMBZ5223BT datasheet.

📁 Similar Datasheet

  • MMBZ5223BTW - SURFACE MOUNT SILICON ZENER DIODES (PAN JIT)
  • MMBZ5223B - SILICON EPITAXIAL PLANAR DIODE (KEC)
  • MMBZ5223B - SILICON PLANAR ZENER DIODES (SEMTECH)
  • MMBZ5223B - SILICON PLANAR ZENER DIODES (CUMSUMI)
  • MMBZ5223B - 350mW SURFACE MOUNT ZENER DIODE (WON-TOP)
  • MMBZ5223B - Zener diode (Excel Semiconductor)
  • MMBZ5223B - Zener Diodes (Fairchild Semiconductor)
  • MMBZ5223B - Surface Mount Zener Diodes (WEITRON)
  • MMBZ5223B - 410 mW Zener Diode 2.4 to 39 Volts (Micro Commercial Components)
  • MMBZ5223B - Zener Voltage Regulator Diode (SeCoS)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
Features • Ultra-Small Surface Mount Package • Planar Die Construction • General Purpose • Ideally Suited for Automated Assembly Processes • Lead Free/RoHS Compliant (Note 2) • "Green" Device (Note 3 and 4) MMBZ5221BT - MMBZ5259BT 150mW SURFACE MOUNT ZENER DIODE Mechanical Data • Case: SOT-523 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020D • Terminals: Solderable per MIL-STD-202, Method 208 • Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). • Polarity: See Diagram • Marking Information: See Page 4 • Ordering Information: See Page 4 • Weight: 0.
