MMSZ5246B Datasheet (Diodes Incorporated)

Part	MMSZ5246B
Description	500mW SURFACE MOUNT ZENER DIODE
Category	Diode
Manufacturer	Diodes Incorporated
Size	370.43 KB

MMSZ5246B Datasheet (PDF) Download

Pricing from 0.01673 USD, available from Avnet and Newark.Powered by Octopart

Diodes Incorporated

MMSZ5246B Overview

Key Specifications

Package: SOD-123-2
Pins: 2
Height: 1.12 mm
Length: 2.69 mm

Key Features

500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 &
Halogen and Antimony Free. “Green” Device (Notes 3 &

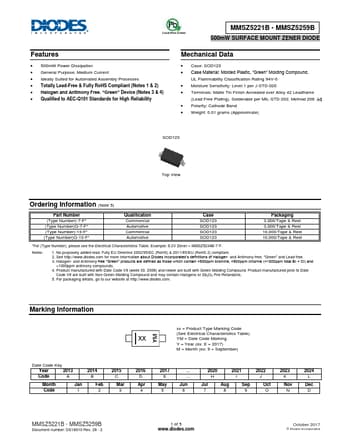

MMSZ5246B datasheet preview

Price & Availability

Seller	Inventory	Price Breaks	Buy
Avnet	398000	3000+ : 0.01673 USD 6000+ : 0.01615 USD 12000+ : 0.01591 USD 24000+ : 0.01568 USD	View Offer
Newark	5035	5+ : 0.157 USD 10+ : 0.092 USD 25+ : 0.077 USD 50+ : 0.061 USD	View Offer

Similar Parts

Part Number	Manufacturer	Description
MMSZ5246BS	Taiwan Semiconductor	200mW Surface Mount Zener Diode
MMSZ5246B	Taiwan Semiconductor	Surface Mount Zener Diode
MMSZ5246BS	JCET	ZENER DIODE
MMSZ5246BT1G	onsemi	Zener Voltage Regulators
MMSZ5246BS	Won-Top Electronics	200mW SURFACE MOUNT ZENER DIODE

MMSZ5246B datasheet comparison
