RL101 Datasheet

1.0A SILICON RECTIFIER

No Preview Available !

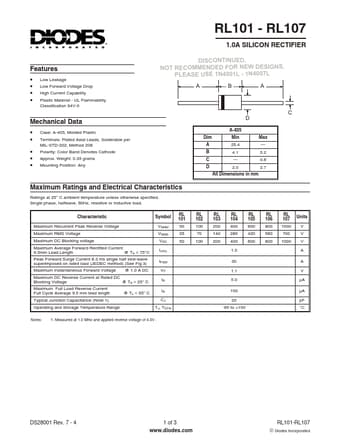

RL101 - RL107
1.0A SILICON RECTIFIER
Features
· Low Leakage
· Low Forward Voltage Drop
· High Current Capability
· Plastic Material - UL Flammability
Classification 94V-0
Mechanical Data
· Case: A-405, Molded Plastic
· Terminals: Plated Axial Leads, Solderable per
MIL-STD-202, Method 208
· Polarity: Color Band Denotes Cathode
· Approx. Weight: 0.35 grams
· Mounting Position: Any
DISCONTINUED,
NOT RECOMMENDED FOR NEW DESIGNS,
PLEASE USE 1N4001L - 1N4007L
ABA
D
A-405
Dim Min Max
A 25.4 —
B 4.1 5.2
C — 0.6
D 2.0 2.7
All Dimensions in mm
C
Maximum Ratings and Electrical Characteristics
Ratings at 25° C ambient temperature unless otherwise specified.
Single phase, halfwave, 60Hz, resistive or inductive load.
Characteristic
Symbol
RL
101
RL
102
RL
103
RL
104
RL
105
RL
106
RL
107
Units
Maximum Recurrent Peak Reverse Voltage
VRRM 50 100 200 400 600 800 1000 V
Maximum RMS Voltage
VRMS
35
70 140 280 420 560 700 V
Maximum DC Blocking voltage
VDC 50 100 200 400 600 800 1000 V
Maximum Average Forward Rectified Current
9.5mm Lead Length
@ TA = 75°C
I(AV)
1.0
A
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method) (See Fig 3)
IFSM
30
A
Maximum Instantaneous Forward Voltage @ 1.0 A DC
VF
1.1 V
Maximum DC Reverse Current at Rated DC
Blocking Voltage
@ TA = 25° C
Maximum Full Load Reverse Current
Full Cycle Average 9.5 mm lead length
@ TL = 55° C
Typical Junction Capacitance (Note 1)
IR
IR
CJ
5.0 µA
100 µA
20 pF
Operating and Storage Temperature Range
TJ, TSTG
-65 to +150
°C
Notes: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V.
DS28001 Rev. 7 - 4
1 of 3
www.diodes.com
RL101-RL107
ã Diodes Incorporated


Diodes Semiconductor Electronic Components Datasheet

RL101 Datasheet

1.0A SILICON RECTIFIER

No Preview Available !

DISCONTINUED,
1.0
NOT RECOMMENDED FOR 4N.0EW DESIGNS,
PLEASE USE 1N4001L - 1N4007L
1.0
0.75
0.50
0.25
9.5mm Lead
Length to
PC Board
0
0 25 50
75 100 125 150 175
TA, AMBIENT TEMPERATURE (°C)
Fig. 1, Forward Current Derating Curve
30
8.3ms Single Half Sine-Wave
JEDEC Method
25
20
15
10
5
1
10 100
NUMBER OF CYCLES AT 60 Hz
Fig. 3, Maximum Non-Repetitive Surge Current
10
0.1
0.01
0.6
0.8
1.0 1.2
1.4 1.6
VF, INSTANTANEOUS FWD VOLTAGE (V)
Fig. 2, Typical Forward Characteristics
100
10
1
10 100
VR, REVERSE VOLTAGE (VOLTS)
Fig. 4, Typical Junction Capacitance
DS28001 Rev. 7 - 4
1
0.1
0.01
0
20 40
60 80 100 120 140
PERCENT OF PEAK REVERSE VOLTAGE (%)
Fig. 5, Typical Reverse Characteristics
2 of 3
www.diodes.com
RL101-RL107
