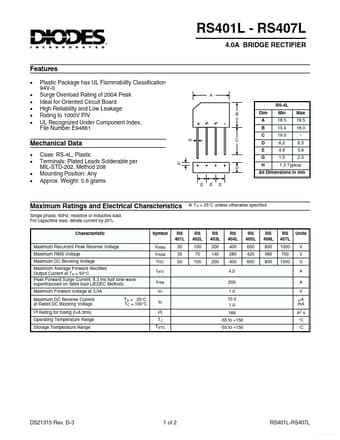

RS406L Datasheet | Diodes Incorporated

Features - - - - - - Plastic Package has UL Flammability Classification 94V-0 Surge Overload Rating of 200A Peak Ideal for Oriented Circuit Board High Reliability and Low Leakage Rating to 1000V PIV UL Recognized Under ponent Index, File Number E94661 RS-4L Dim A B C Min 18.5 15.4 19.0 6.2 4.6 1.5 Max 19.5 16.0 6.5 5.6 2.0 + Mechanical Data - - - - Case: RS-4L, Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Mounting Position: Any Approx. Weight: 5.6 grams 1.3 Typical All Dimensions in mm Maximum Ratings and Electrical Characteristics Single phase, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Output Current at TA = 50°C Peak Forward Surge Current, 8.3 ms half sine-wave superimposed on rated load (JEDEC Method) Maximum Forward Voltage at 3.0A Maximum DC Reverse Current at Rated DC Blocking Voltage I2t Rating for fusing (t<8.3ms) Operating Temperature Range Storage Temperature Range TA = 25°C TC = 100°C Symbol VRRM VRSM VDC I(AV) IFSM VF IR I 2t TJ TSTG RS 401L 50 35 50 @ TA = 25°C unless otherwise specified RS 402L 100 70 100 RS 403L 200 140 200 RS 404L 400 280 400 4.0 200 1.0 10.0 1.0 166 -55 to +150 -55 to +150 RS 405L 600 420 600 RS 406L 800 560 800 RS 407L 1000 700 1000 Units V V V A A V m A m A A2 s °C °C DS21315 Rev. D-3 1 of 2 RS401L-RS407L Free Datasheet http://../ I(AV), AVERAGE OUTPUT CURRENT (A) IF, INSTANTANEOUS FWD CURRENT...
