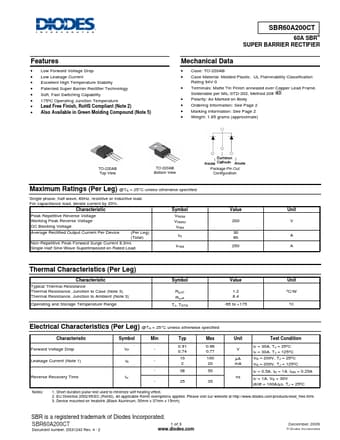

SBR60A200CT Datasheet

SUPER BARRIER RECTIFIER

No Preview Available !

Features
Low Forward Voltage Drop
Low Leakage Current
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
175ºC Operating Junction Temperature
Lead Free Finish, RoHS Compliant (Note 2)
Also Available in Green Molding Compound (Note 5)
SBR60A200CT
60A SBR®
SUPER BARRIER RECTIFIER
Mechanical Data
Case: TO-220AB
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Terminals: Matte Tin Finish annealed over Copper Lead Frame.
Solderable per MIL-STD-202, Method 208
Polarity: As Marked on Body
Ordering Information: See Page 2
Marking Information: See Page 2
Weight: 1.85 grams (approximate)
TO-220AB
Top View
TO-220AB
Bottom View
Maximum Ratings (Per Leg) @TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current Per Device (Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
VRRM
VRWM
VRM
IO
IFSM
Package Pin Out
Configuration
Value
200
30
60
250
Unit
V
A
A
Thermal Characteristics (Per Leg)
Characteristic
Typical Thermal Resistance
Thermal Resistance, Junction to Case (Note 3)
Thermal Resistance, Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Symbol
RθJC
RBθJA
TJ, TSTG
Value
1.2
8.4
-65 to +175
Unit
ºC/W
ºC
Electrical Characteristics (Per Leg) @TA = 25°C unless otherwise specified
Characteristic
Symbol
Min
Typ
Max Unit
Test Condition
Forward Voltage Drop
Leakage Current (Note 1)
Reverse Recovery Time
VF
-
0.91 0.96
0.74 0.77
V IF = 30A, TJ = 25ºC
IF = 30A, TJ = 125ºC
IR
-
10 100 μA VR = 200V, TJ = 25ºC
2 20 mA VR = 200V, TJ = 125ºC
- 38 50
IF = 0.5A, IR = 1A, IRR = 0.25A
trr - 25 35 ns IF = 1A, VR = 30V
di/dt = 100A/μs, TJ = 25ºC
Notes:
1. Short duration pulse test used to minimize self-heating effect.
2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/products/lead_free.html.
3. Device mounted on heatsink (Black Aluminum, 50mm x 37mm x 15mm)
SBR is a registered trademark of Diodes Incorporated.
SBR60A200CT
Document number: DS31243 Rev. 4 - 2
1 of 3
www.diodes.com
December 2009
© Diodes Incorporated


Diodes Semiconductor Electronic Components Datasheet

SBR60A200CT Datasheet

SUPER BARRIER RECTIFIER

No Preview Available !

SBR60A200CT
100
10
1
10
TA = 175°C
1 TA = 125°C
0.1 TA = 85°C
0.1
0.01
0.001
60
50
RθJA = RθJC
Total Device
0.01
0.001
TA = 25°C
TA = -55°C
0.0001
0 30 60 90 120 150 180
VR, INSTANTANEOUS REVERSE VOLTAGE (V)
40
30
RθJA = RθJC
Per Element
20
10
0
25
RθJA = 8°C/W
Per Element
Note 3
50 75 100 125 150
TA, CASE TEMPERATURE (°C)
Fig. 3 Forward Current Derating Curve
175
Ordering Information (Notes 4 & 5)
Notes:
Part Number
SBR60A200CT
SBR60A200CT-G
Case
TO-220AB
TO-220AB
Packaging
50 pieces/tube
50 pieces/tube
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR60A200CT-G.
Marking Information
SBR
60A200CT
YYWW AB
SBR60A200CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 07 = 2007)
WW = Week (01-52)
SBR is a registered trademark of Diodes Incorporated.
SBR60A200CT
Document number: DS31243 Rev. 4 - 2
2 of 3
www.diodes.com
December 2009
© Diodes Incorporated
