DISCONTINUED
Features
• Low Forward Voltage Drop • Excellent High Temperature Stability • Patented Super Barrier Rectifier Technology • Soft, Fast Switching Capability • Lead Free Finish, RoHS Compliant (Note 2)
SBR60A45PT
60A SBR® SUPER BARRIER RECTIFIER
Mechanical Data
• Case: TO-247AB • Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0 • Terminal: Finish ⎯ Bright Tin. Plated Leads Solderable per MIL-
STD-202, Method 208 • Polarity: As Marked on Body • Marking Information: See Page 2 • Ordering Information: See Page 2 • Weight: 5.6 grams (approximate)
Package Pin Out Configuration
Maximum Ratings @TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%.

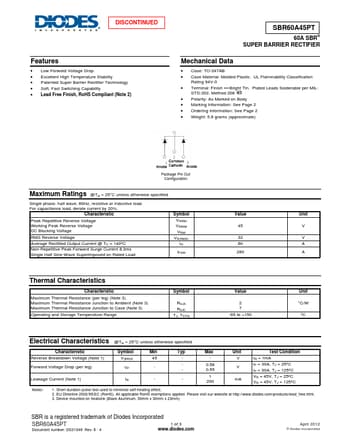

SBR60A45PT Datasheet
