US1JDF Datasheet

1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER

No Preview Available !

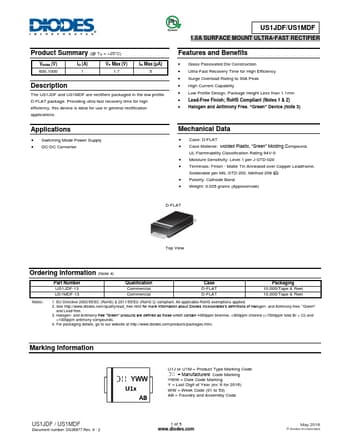

Green US1JDF/US1MDF
1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER
Product Summary (@ TA = +25°C)
VRRM (V)
600,1000
IO (A)
1
VF(MAX) (V)
1.7
IR(MAX) (µA)
5
Description and Applications
The US1JDF and US1MDF are rectifiers packaged in the low profile
D-FLAT package. Providing ultra-fast recovery time for high
efficiency, this device is ideal for use in general rectification
applications such as:
Switching Mode Power Supply
DC-DC Converter
Features and Benefits
Glass Passivated Die Construction
Ultra-Fast Recovery Time for High Efficiency
Surge Overload Rating to 30A Peak
High Current Capability
Low Profile Design, Package Height Less than 1.1mm
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: D-FLAT
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.064 grams (Approximate)
D-FLAT
Top View
Ordering Information (Note 4)
Notes:
Part Number
US1JDF-13
US1MDF-13
Qualification
Commercial
Commercial
Case
D-FLAT
D-FLAT
Packaging
10,000/Tape & Reel
10,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
U1J or U1M = Product Type Marking Code
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 4 for 2014)
WW = Week Code (01 to 53)
AB = Foundry and Assembly Code
US1JDF / US1MDF
Document number: DS36877 Rev. 8 - 2
1 of 5
www.diodes.com
November 2014
© Diodes Incorporated


Diodes Semiconductor Electronic Components Datasheet

US1JDF Datasheet

1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER

No Preview Available !

Maximum Ratings (@TA = +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 5)
RMS Reverse Voltage
Average Rectified Output Current
@TT = +25°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
VRRM
VRWM
VR
VR(RMS)
IO
IFSM
US1JDF/US1MDF
US1JDF
US1MDF
600 1000
420
1.0
30
700
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Terminal (Note 8)
Typical Thermal Resistance, Junction to Ambient (Note 8)
Operating and Storage Temperature Range
Symbol
RJT
RJA
TJ, TSTG
Value
44
80
-55 to +150
Unit
°C/W
°C/W
°C
Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Minimum Reverse Breakdown Voltage (Note 5)
Maximum Forward Voltage Drop
Peak Reverse Current
at Rated DC Blocking Voltage (Note 5)
Maximum Reverse Recovery Time (Note 6)
Typical Total Capacitance (Note 7)
@IR = 5μA
@ IF = 1.0A
@TA = +25°C
@TA = +100°C
Symbol
V(BR)R
VF
IR
trr
CT
US1JDF
600
1.7
5.0
100
75
10
Notes:
5. Short duration pulse test used to minimize self-heating effect.
6. Measured with IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 7.
7. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
8. Device mounted on FR-4 substrate, 1" * 1", 2oz, single-sided, PC boards with 0.1"*0.15" copper pads.
9. Device mounted on FR-4 substrate, 0.4" * 0.5", 2oz, single-sided, PC boards with 0.2"*0.25" copper pads.
US1MDF
1000
Unit
V
V
μA
ns
pF
1.20
1
0.80
0.60
0.40
Note 9
Note 8
0.20
0
0
25 50 75 100 125
TA, AMBIENT TEMPERATURE (°C)
Figure 1 Forward Current Derating
150
10
TA = 150°C
TA = 125°C
1
TA = 100°C
TA = 85°C
0.1
TA = 25°C
TA = -55°C
0.01
0.5 1.0 1.5 2.0 2.5 3.0
VF, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics
US1JDF / US1MDF
Document number: DS36877 Rev. 8 - 2
2 of 5
www.diodes.com
November 2014
© Diodes Incorporated
