MBR1035 - SCHOTTKY BARRIER RECTIFIER

Download the MBR1035 datasheet PDF. This datasheet also covers the MBR1060 variant, as both devices belong to the same schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Guard Ring Die Construction for Transient Protection.
  • Low Power Loss, High Efficiency.
  • High Surge Capability.
  • High Current Capability and Low Forward Voltage Drop.
  • For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR1060_DiodesIncorporated.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MBR1035 Schottky Barrier Rectifier Inchange Semiconductor
MBR1035 SCHOTTKY RECTIFIER International Rectifier
MBR1035 (MBR1035 - MBR1060) Rectifiers Fairchild Semiconductor
MBR1035 SCHOTTKY BARRIER RECTIFIERS LITE-ON
MBR1035 Power Rectifiers ON Semiconductor

Other Datasheets by Diodes Incorporated

Part Number Description
MBR1035CT 10A SCHOTTKY BARRIER RECTIFIER
MBR1030 SCHOTTKY BARRIER RECTIFIER
MBR1030CT 10A SCHOTTKY BARRIER RECTIFIER
MBR10100C HIGH VOLTAGE POWER SCHOTTKY RECTIFIER
MBR10100CT (MBR1070CT - MBR10100CT) HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

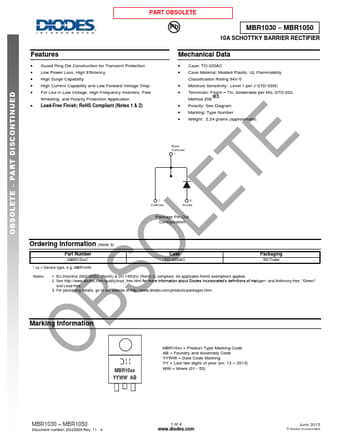

PART OBSOLETE Pb MBR1030 – MBR1050 10A SCHOTTKY BARRIER RECTIFIER Features  Guard Ring Die Construction for Transient Protection  Low Power Loss, High Efficiency  High Surge Capability  High Current Capability and Low Forward Voltage Drop  For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application  Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Mechanical Data  Case: TO-220AC  Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020C  Terminals: Finish – Tin. Solderable per MIL-STD-202, Method 208  Polarity: See Diagram  Marking: Type Number  Weight: 2.
