PDS540 - 5A SCHOTTKY BARRIER RECTIFIER

Features

  • Guard Ring Die Construction for Transient Protection.
  • Low Power Loss, High Efficiency.
  • Low Forward Voltage Drop.
  • For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection.

📥 Download Datasheet

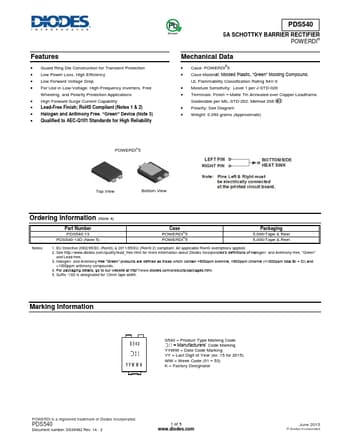

Datasheet preview – PDS540

Datasheet Details

Part number PDS540
Manufacturer Diodes Incorporated
File Size 399.78 KB
Description 5A SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet PDS540 Datasheet
Additional preview pages of the PDS540 datasheet.

📁 Similar Datasheet

  • PDS540Q - 5A SCHOTTKY BARRIER RECTIFIER (Diodes)
  • PDS5100Q - 5A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (Diodes)
  • PDS560Q - 5A SCHOTTKY BARRIER RECTIFIER (DIODES)
  • PDS-721 - Programmable Device Servers (ICP DAS)
  • PDS04N15 - N-Channel MOSFETs (Potens semiconductor)
  • PDS0744 - N+P Channel MOSFETs (Potens semiconductor)
  • PDS0960 - N-Channel MOSFETs (Potens semiconductor)
  • PDS0966 - N-Channel MOSFETs (Potens semiconductor)
  • PDS0976 - N-Channel MOSFET (Potens semiconductor)
  • PDS0978 - N-Channel MOSFET (Potens semiconductor)
Other Datasheets by Diodes Incorporated
  • PDS5100 - 5A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
  • PDS5100H - 5A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
  • PDS560 - 5A SCHOTTKY BARRIER RECTIFIER
  • PDS3100 - 3A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
  • PDS3200 - 3A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
  • PDS340 - 3A SCHOTTKY BARRIER RECTIFIER
  • PDS360 - 3A SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
Features  Guard Ring Die Construction for Transient Protection  Low Power Loss, High Efficiency  Low Forward Voltage Drop  For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Applications  High Forward Surge Current Capability  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability PDS540 Green 5A SCHOTTKY BARRIER RECTIFIER POWERDI® Mechanical Data  Case: POWERDI®5  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
