UG1001 - ULTRA-FAST GLASS PASSIVATED RECTIFIER

Features

  • Glass Passivated Die Construction Diffused Junction Ultra-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 30A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 A B A D DO-41 Dim A B C D Min 25.40 4.06 0.71 2.00 Max ¾ 5.21 0.864 2.72 C Mechanical Data.
  • Case: Molded Plastic Terminals: Plated Leads Solderable.

📥 Download Datasheet

Datasheet Details

Part number UG1001
Manufacturer Diodes Incorporated
File Size 91.18 KB
Description ULTRA-FAST GLASS PASSIVATED RECTIFIER
Datasheet download datasheet UG1001 Datasheet

📁 Similar Datasheet

  • UG1001 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1002 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1003 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1004 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1005 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1006 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1007 - ULTRA-FAST GLASS PASSIVATED RECTIFIER (Lite-On Technology)
  • UG1094 - BNC Type Connectors (DDK)
  • UG10ACT - ULTRAFAST SOFT RECOVERY RECTIFIER (General Semiconductor)
  • UG10BCT - Dual Common Cathode Ultrafast Rectifier (Vishay)
Other Datasheets by Diodes Incorporated
  • UG1002 - ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG1003 - ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG1004 - ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG1005 - ULTRA-FAST GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription

Click to expand full text

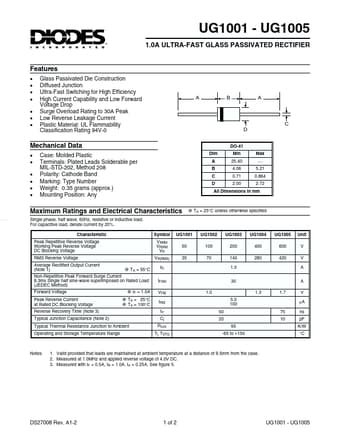

UG1001 - UG1005 1.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER Features · · · · · · · Glass Passivated Die Construction Diffused Junction Ultra-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 30A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 A B A D DO-41 Dim A B C D Min 25.40 4.06 0.71 2.00 Max ¾ 5.21 0.864 2.72 C Mechanical Data · · · · · · Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Marking: Type Number Weight: 0.35 grams (approx.) Mounting Position: Any All Dimensions in mm Maximum Ratings and Electrical Characteristics www.DataSheet4U.
