W01G - 1.5A GLASS PASSIVATED BRIDGE RECTIFIER

Key Features

  • Glass Passivated Die Construction.
  • Low Forward Voltage Drop, High Current Capability.
  • Surge Overload Rating to 50A Peak.
  • Ideal for Printed Circuit Boards.
  • Case to Terminal Isolation Voltage 1500V.
  • UL Listed Under Recognized Component Index, File Number E94661.
  • Lead Free Finish, RoHS Compliant (DC 514+) (Note 3) Mechanical Data.
  • Case: WOG.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level.

📥 Download Datasheet

Full PDF Text Transcription for W01G (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for W01G. For precise diagrams, and layout, please refer to the original PDF.

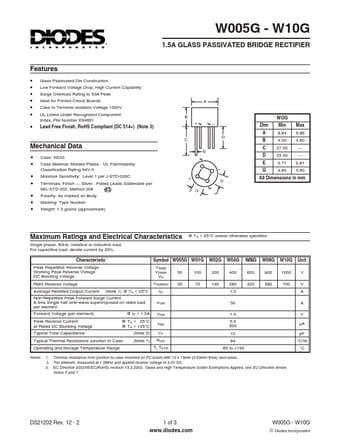

W005G - W10G 1.5A GLASS PASSIVATED BRIDGE RECTIFIER Features · Glass Passivated Die Construction · Low Forward Voltage Drop, High Current Capability · Surge Overload Rati...

View more extracted text
ow Forward Voltage Drop, High Current Capability · Surge Overload Rating to 50A Peak · Ideal for Printed Circuit Boards · Case to Terminal Isolation Voltage 1500V · UL Listed Under Recognized Component Index, File Number E94661 · Lead Free Finish, RoHS Compliant (DC 514+) (Note 3) Mechanical Data · Case: WOG · Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 · Moisture Sensitivity: Level 1 per J-STD-020C · Terminals: Finish ¾ Silver. Plated Leads Solderable per MIL-STD-202, Method 208 e3 · Polarity: As marked on Body · Marking: Type Number · Weight: 1.3 grams (approximate) A B + - D C E + G G WOG
