W10G - 1.5A GLASS PASSIVATED BRIDGE RECTIFIER

Product Overview

Diodes Incorporated

📥 Download Datasheet

W10G 1.5A GLASS PASSIVATED BRIDGE RECTIFIER by Diodes Incorporated - Datasheet Preview — Datasheet preview – W10G

Datasheet Details

Part number	W10G
Manufacturer	DIODES Incorporated
File Size	352.43 KB
Description	1.5A GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	W10G Datasheet

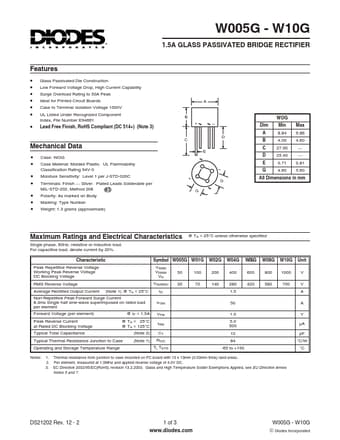

Additional preview pages of the W10G datasheet.

Product details

Features

Glass Passivated Die Construction.
Low Forward Voltage Drop, High Current Capability.
Surge Overload Rating to 50A Peak.
Ideal for Printed Circuit Boards.
Case to Terminal Isolation Voltage 1500V.
UL Listed Under Recognized Component Index, File Number E94661.
Lead Free Finish, RoHS Compliant (DC 514+) (Note 3) Mechanical Data.
Case: WOG.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level.
