HZ11A3 - Silicon Planar Zener Diodes

Download the HZ11A3 datasheet PDF (HZ11A1 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon planar zener diodes.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HZ11A1-Diotec.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HZ11A3
Manufacturer Diotec
File Size 77.41 KB
Description Silicon Planar Zener Diodes
Datasheet download datasheet HZ11A3 Datasheet

📁 Similar Datasheet

  • HZ11A3 - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZ11A3 - SILICON EPITAXIAL PLANER ZENER DIODES (SEMTECH)
  • HZ11A3-N - Silicon Planar Zener Diode (Renesas)
  • HZ11A1 - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZ11A1 - SILICON EPITAXIAL PLANER ZENER DIODES (SEMTECH)
  • HZ11A1-N - Silicon Planar Zener Diode (Renesas)
  • HZ11A2 - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZ11A2 - SILICON EPITAXIAL PLANER ZENER DIODES (SEMTECH)
  • HZ11A2-N - Silicon Planar Zener Diode (Renesas)
  • HZ11 - Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply (Hitachi Semiconductor)
Other Datasheets by Diotec
  • HZ11A1 - Silicon Planar Zener Diodes
  • HZ11A2 - Silicon Planar Zener Diodes
  • HZ11B1 - Silicon Planar Zener Diodes
  • HZ11B2 - Silicon Planar Zener Diodes
  • HZ11B3 - Silicon Planar Zener Diodes
  • HZ11C1 - Silicon Planar Zener Diodes
  • HZ11C2 - Silicon Planar Zener Diodes
  • HZ11C3 - Silicon Planar Zener Diodes

Full PDF Text Transcription

Click to expand full text

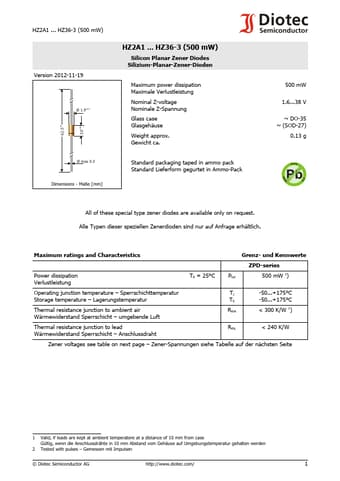

62.5±3 3.9±0.4 HZ2A1 ... HZ36-3 (500 mW) Version 2012-11-19 Ø 1.9±0.1 Ø max 0.5 Dimensions - Maße [mm] HZ2A1 ... HZ36-3 (500 mW) Silicon Planar Zener Diodes Silizium-Planar-Zener-Dioden Maximum power dissipation Maximale Verlustleistung Nominal Z-voltage Nominale Z-Spannung Glass case Glasgehäuse Weight approx. Gewicht ca. Standard packaging taped in ammo pack Standard Lieferform gegurtet in Ammo-Pack 500 mW 1.6...38 V ~ DO-35 ~ (SOD-27) 0.13 g All of these special type zener diodes are available only on request. Alle Typen dieser speziellen Zenerdioden sind nur auf Anfrage erhältlich.
