1JU41 - HIGH EFFICIENT RECTIFIER

Datasheet Summary

Features

  • :.
  • Glass passivated junction chip.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Pb / RoHS Free.

📥 Download Datasheet

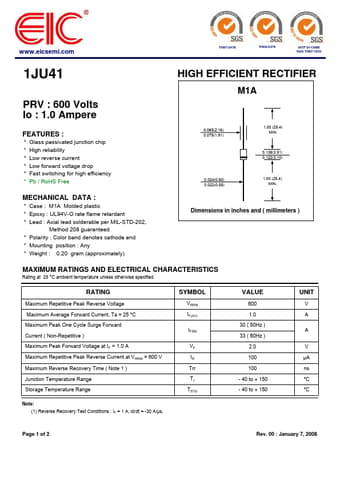

Datasheet preview – 1JU41

Datasheet Details

Part number 1JU41
Manufacturer EIC
File Size 89.56 KB
Description HIGH EFFICIENT RECTIFIER
Datasheet download datasheet 1JU41 Datasheet
Additional preview pages of the 1JU41 datasheet.

📁 Similar Datasheet

  • 1JU41 - RECTIFIER (HIGH SPEED RECTIFIER APPLICATIONS) (Toshiba Semiconductor)
  • 1JU42 - RECTIFIER (HIGH SPEED RECTIFIER APPLICATIONS) (Toshiba Semiconductor)
Other Datasheets by EIC

    Full PDF Text Transcription

    Click to expand full text
    www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 1JU41 PRV : 600 Volts Io : 1.0 Ampere FEATURES : * Glass passivated junction chip * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb / RoHS Free MECHANICAL DATA : * Case : M1A Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.20 gram (approximately) HIGH EFFICIENT RECTIFIER M1A 0.085(2.16) 0.075(1.91) 0.024(0.60) 0.022(0.55) 1.00 (25.4) MIN. 0.138(3.51) 0.122(3.10) 1.00 (25.4) MIN.
