EU1C - FAST RECOVERY RECTIFIER DIODE

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Pb / RoHS Free.

📥 Download Datasheet

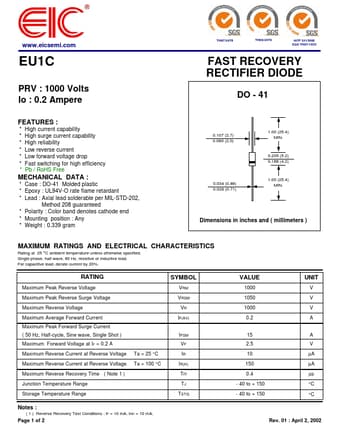

Datasheet preview – EU1C

Datasheet Details

Part number EU1C
Manufacturer EIC
File Size 42.70 KB
Description FAST RECOVERY RECTIFIER DIODE
Datasheet download datasheet EU1C Datasheet
Additional preview pages of the EU1C datasheet.

📁 Similar Datasheet

  • EU1C - Silicon And Fast Recovery Rectifiers (WEJ)
  • EU1C - High Efficiency Rectifiers (LGE)
  • EU1 - Fast Recovery Diode (Sanken)
  • EU1 - Silicon And Fast Recovery Rectifiers (WEJ)
  • EU1 - High Efficiency Rectifiers (LGE)
  • EU1A - Silicon And Fast Recovery Rectifiers (WEJ)
  • EU1A - High Efficiency Rectifiers (LGE)
  • EU1Z - Fast Recovery Diode (Sanken)
  • EU1Z - Silicon And Fast Recovery Rectifiers (WEJ)
  • EU1Z - High Efficiency Rectifiers (LGE)
Other Datasheets by EIC
  • EU1 - FAST RECOVERY RECTIFIER DIODES
  • EU1A - FAST RECOVERY RECTIFIER DIODES
  • EU1Z - FAST RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
www.eicsemi.com EU1C PRV : 1000 Volts Io : 0.2 Ampere TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 FAST RECOVERY RECTIFIER DIODE DO - 41 FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb / RoHS Free MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.339 gram 0.107 (2.7) 0.080 (2.0) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2) 1.00 (25.4) MIN.
