AD52068 - 2 x 20W Stereo Class-D Audio Amplifier

Product Overview

ESMT

Part number	AD52068
Manufacturer	ESMT
File Size	1.16 MB
Description	2 x 20W Stereo Class-D Audio Amplifier
Datasheet	AD52068 Datasheet

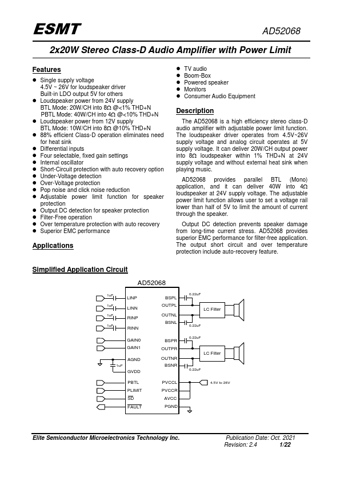

Additional preview pages of the AD52068 datasheet.

The AD52068 is a high efficiency stereo class-D audio amplifier with adjustable power limit function.

Single supply voltage 4.5V ~ 26V for loudspeaker driver Built-in LDO output 5V for others.
Loudspeaker power from 24V supply BTL Mode: 20W/CH into 8 @.
