BD4830FVE, BD4860G, CMOS RESET

Reset Vref Vref GND GND Pin No. SMP5C2 EMP5 1 Vout Vout 2 VDD SUB 3 GND NC. 4 NC. GND 5 NC. VDD http://www.Datasheet4U.com Absolute Maximum Ratings (Ta=25˚C) Parameter Power supply voltage CMOS output Power dissipation (SMP5C2) ∗1 Power dissipation (EMP5) ∗2 Symbol VDD * GND VO.

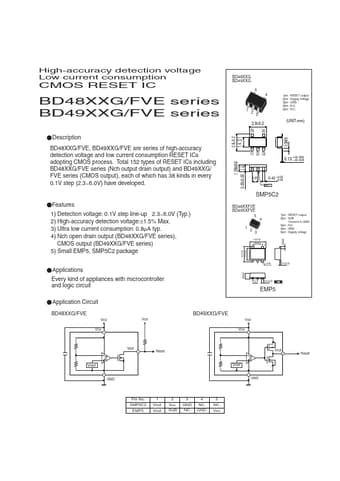

BD4860G-ETC.pdf

BD4830FVE Datasheet Preview — This datasheet PDF includes multiple part numbers: BD4830FVE, BD4860G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD4830FVE, BD4860G

Manufacturer:

ETC

File Size:

219.48 KB

Description:

CMOS RESET

Note:

This datasheet PDF includes multiple part numbers: BD4830FVE, BD4860G.
Please refer to the document for exact specifications by model.

BD4830FVE Features

* 1) Detection voltage: 0.1V step line-up 2.3~6.0V (Typ.) 2) High-accuracy detection voltage:±1.5% Max. 3) Ultra low current consumption: 0.8µA typ. 4) Nch open drain output (BD48XXG/FVE series), CMOS output (BD49XXG/FVE series) 5) Small EMP5, SMP5C2 package Applications Every kind of appliances with
