AD7216N2L - AC-DC / External Freestanding Adapter

Download the AD7216N2L datasheet PDF. This datasheet also covers the AD7216N2L_ad7216n2l_ds_1208918039 variant, as both devices belong to the same ac-dc / external freestanding adapter family and are provided as variant models within a single manufacturer datasheet.

Features

  • Class II.
  • Universal AC input.
  • Fully regulated output.
  • Overvoltage and short circuit protection.
  • Constant voltage.
  • High efficiency.
  • IEC320 AC receptacle, 2 pin (type C8).
  • Built in EMI filter www. DataSheet4U. com.
  • (CISPR 22 Class B).
  • AC Input fuse.
  • Complies with Blue Angel requirement Input range: Frequency: Input current: Efficiency: EMI/RFI: Safety ground leakage current: 90-264 Vac (wide range).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AD7216N2L_ad7216n2l_ds_1208918039_Emerson.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AD7216N2L
Manufacturer Emerson
File Size 234.29 KB
Description AC-DC / External Freestanding Adapter
Datasheet download datasheet AD7216N2L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AD721 RGB to NTSC/PAL Encoders Analog Devices
AD720 RGB to NTSC/PAL Encoders Analog Devices
AD722 RGB to NTSC/PAL Encoder Analog Devices
AD7224 8-Bit DAC Analog Devices
AD7225 LC2MOS Quad 8-Bit DAC with Separate Reference Inputs Analog Devices

Other Datasheets by Emerson

Part Number Description

Full PDF Text Transcription

Click to expand full text

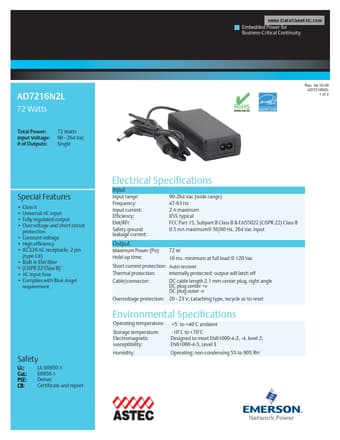

Embedded Power for Business-Critical Continuity AD7216N2L 72 Watts Total Power: Input Voltage: # of Outputs: 72 Watts 90 - 264 Vac Single Rev. 04.16.08 AD7216N2L 1 of 2 RoHS Electrical Specifications Input Special Features • Class II • Universal AC input • Fully regulated output • Overvoltage and short circuit protection • Constant voltage • High efficiency • IEC320 AC receptacle, 2 pin (type C8) • Built in EMI filter www.DataSheet4U.com • (CISPR 22 Class B) • AC Input fuse • Complies with Blue Angel requirement Input range: Frequency: Input current: Efficiency: EMI/RFI: Safety ground leakage current: 90-264 Vac (wide range) 47-63 Hz 2 A maximum 85% typical FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B 0.
