5KP51CA - Transient Voltage Suppressors

Download the 5KP51CA datasheet PDF. This datasheet also covers the 5KP5.0A variant, as both devices belong to the same transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • ‧Constructed with Glass Passivated Die ‧5000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases:R6 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 2.04 grams (approximate).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5KP5.0A-Eris.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5KP51CA
Manufacturer Eris
File Size 345.17 KB
Description Transient Voltage Suppressors
Datasheet download datasheet 5KP51CA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5KP51CA 5000 Watt Axial Lead TVS GW
5KP51CA Axial Lead Transient Voltage Suppressors SOCAY
5KP51CA TVS LITE-ON
5KP51CA TVS Diode Littelfuse
5KP51CA 5000W TRANSIENT VOLTAGE SUPPRESSOR Diodes Incorporated

Other Datasheets by Eris

Part Number Description
5KP51A Transient Voltage Suppressors
5KP5.0A Transient Voltage Suppressors
5KP5.0CA Transient Voltage Suppressors
5KP54A Transient Voltage Suppressors
5KP54CA Transient Voltage Suppressors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

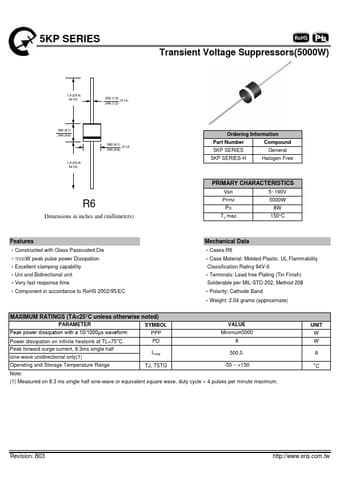

5KP SERIES Transient Voltage Suppressors(5000W) 1.0 (25.4) MIN. .052 (1.3) DIA. .048 (1.2) .360 (9.1) .340 (8.6) 1.0 (25.4) MIN. .360 (9.1) DIA. .340 (8.6) R6 Dimensions in inches and (millimeters) Ordering Information Part Number Compound 5KP SERIES General 5KP SERIES-H Halogen Free PRIMARY CHARACTERISTICS VBR 5~190V PPPM 5000W PD 8W TJ max 150°C Features ‧Constructed with Glass Passivated Die ‧5000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases:R6 ‧Case Material: Molded Plastic.
