• Part: HER503
  • Description: High Efficiency Rectifiers
  • Manufacturer: Eris Technology
  • Size: 159.34 KB
Download HER503 Datasheet PDF
Eris Technology
HER503
HER503 is High Efficiency Rectifiers manufactured by Eris Technology.
- Part of the HER501 comparator family.
HER501 thru HER507 1.0 (25.4) MIN. .052 (1.3) DIA. .048 (1.2) .375 (9.5) .335 (8.5) 1.0 (25.4) MIN. .220 (5.6) .197 (5.0) D I A . DO-201AD Dimensions in inches and (millimeters) Features ‧Low forward voltage drop ‧High current capability ‧High reliability ‧High surge current capability ‧High speed switching ‧AEC-Q101 qualified High Efficiency Rectifiers Plastic Passivation Junction Ordering Information Part Number HER50x Remark General HER50x-H Halogen Free HER50x-Q Automotive PRIMARY CHARACTERISTICS IF 5A VRRM 50~1000V IFSM 100A VF 1.0V,1.3V, 1.7V TJ max 125°C Mechanical Date ‧Case:DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin...

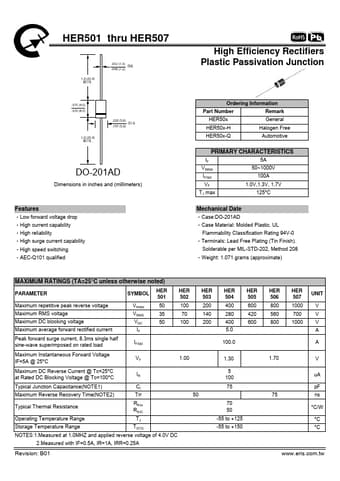

HER503 datasheet preview
