MB13S, MB12S Surface Mount Schottky Bridge Rectifier

MB13S Description

MB12S THRU MB120S Surface Mount Schottky Bridge Rectifier MBS .

MB13S Features

* ‧Schottky Barrier Chip ‧Low Power Loss,High Efficiency ‧Ideally Suited for Automatic Assembly ‧Surge Overload Rating to 30A Peak ‧Plastic Case Material has UL Flammability Classification Rating 94V-0 Ordering Information Part No. MB12S THRU MB120S MB12S THRU MB120S-H Remark General Halogen Free P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB13S, MB12S. Please refer to the document for exact specifications by model.

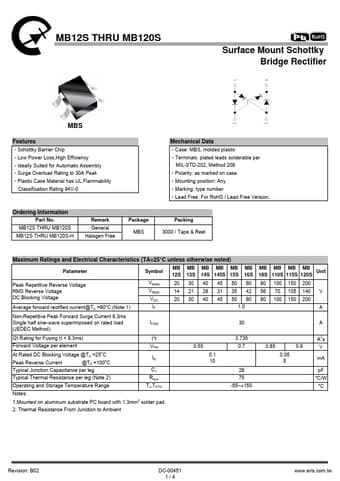

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB13S, MB12S
Manufacturer
Eris
File Size
374.74 KB
Datasheet
MB12S-Eris.pdf
Description
Surface Mount Schottky Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: MB13S, MB12S.
Please refer to the document for exact specifications by model.
