1N5406, 1N5400 Datasheet - Fairchild Semiconductor

1N5406, 1N5400, General Purpose Rectifiers

.

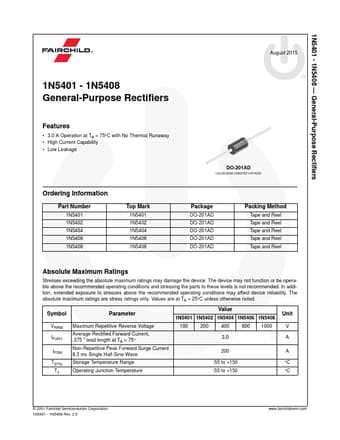

Datasheet Preview Page 1

1N5400-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 1N5406, 1N5400. Please refer to the document for exact specifications by model.
1N5406 Datasheet Preview Page 2 1N5406 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5406, 1N5400

Manufacturer:

Fairchild Semiconductor

File Size:

178.63 KB

Description:

General Purpose Rectifiers

Note:

This datasheet PDF includes multiple part numbers: 1N5406, 1N5400.
Please refer to the document for exact specifications by model.

1N5406 Features

* 3.0 A Operation at TA = 75°C with No Thermal Runaway

* High Current Capability

* Low Leakage Ordering Information Part Number 1N5401 1N5402 1N5404 1N5406 1N5408 Top Mark 1N5401 1N5402 1N5404 1N5406 1N5408 DO-201AD COLOR BAND DENOTES CATHODE Package DO-201AD DO-201AD DO-
