Fairchild Semiconductor Electronic Components Datasheet

7432 Datasheet

Quad 2-Input OR Gate

No Preview Available !

June 1986
Revised March 2000

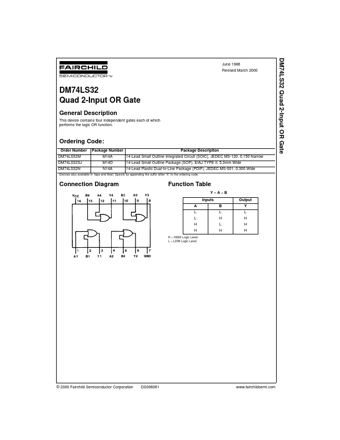

DM74LS32
Quad 2-Input OR Gate
General Description
This device contains four independent gates each of which
performs the logic OR function.
Ordering Code:
Order Number Package Number
Package Description
DM74LS32M
M14A
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
DM74LS32SJ
M14D
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
DM74LS32N
N14A
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y=A+B
Inputs
AB
LL
LH
HL
HH
H = HIGH Logic Level
L = LOW Logic Level
Output
Y
L
H
H
H
© 2000 Fairchild Semiconductor Corporation DS006361
www.fairchildsemi.com


Fairchild Semiconductor Electronic Components Datasheet

7432 Datasheet

Quad 2-Input OR Gate

No Preview Available !

Absolute Maximum Ratings(Note 1)
Supply Voltage
7V
Input Voltage
7V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range
65°C to +150°C
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
VCC
VIH
VIL
IOH
IOL
TA
Parameter
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
Min
4.75
2
0
Nom
5
Max
5.25
0.8
0.4
8
70
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol
Parameter
Conditions
Min
VI Input Clamp Voltage
VCC = Min, II = −18 mA
VOH HIGH Level
Output Voltage
VCC = Min, IOH = Max
VIH = Min
2.7
VOL LOW Level
VCC = Min, IOL = Max
Output Voltage
VIL = Max
IOL = 4 mA, VCC = Min
II
Input Current @ Max Input Voltage
VCC = Max, VI = 7V
IIH HIGH Level Input Current
VCC = Max, VI = 2.7V
IIL LOW Level Input Current
VCC = Max, VI = 0.4V
IOS Short Circuit Output Current
VCC = Max (Note 3)
20
ICCH
Supply Current with Outputs HIGH
VCC = Max
ICCL
Supply Current with Outputs LOW
VCC = Max
Note 2: All typicals are at VCC = 5V, TA = 25°C.
Note 3: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Typ
(Note 2)
3.4
0.35
0.25
3.1
4.9
Max
1.5
0.5
0.4
0.1
20
0.36
100
6.2
9.8
Units
V
V
V
mA
µA
mA
mA
mA
mA
Switching Characteristics
at VCC = 5V and TA = 25°C
Symbol
Parameter
tPLH Propagation Delay Time
LOW-to-HIGH Level Output
tPHL Propagation Delay Time
HIGH-to-LOW Level Output
RL = 2 k
CL = 15 pF
CL = 50 pF
Min Max Min Max
3 11 4 15
3 11 4 15
Units
ns
ns
www.fairchildsemi.com
2
