74ALVCH16240 Datasheet - Fairchild Semiconductor

Low Voltage 16-Bit Inverting Buffer/Line Driver

74ALVCH16240 Features

* s 1.65V to 3.6V VCC supply operation s 3.6V tolerant control inputs and outputs s Bushold on data inputs eliminates the need for external pull-up/pull-down resistors s tPD 3.9 ns max for 3.0V to 3.6V VCC 5.3 ns max for 2.3V to 2.7V VCC 6.0 ns max for 1.65V to 1.95V VCC s Uses patented noise/EMI redu

74ALVCH16240 General Description

The ALVCH16240 contains sixteen inverting buffers with 3-STATE outputs to be employed as a memory and address driver, clock driver, or bus oriented transmitter/ receiver. The device is nibble (4-bit) controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 1.

74ALVCH16240 Datasheet (85.66 KB)

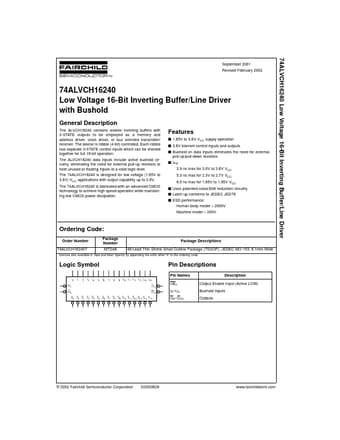

74ALVCH16240 Datasheet Preview — Preview of 74ALVCH16240 PDF

Datasheet Details

Part number:

74ALVCH16240

Manufacturer:

Fairchild Semiconductor

File Size:

85.66 KB

Description:

Low voltage 16-bit inverting buffer/line driver.
74ALVCH16240 Low Voltage 16-Bit Inverting Buffer/Line Driver September 2001 Revised February 2002 74ALVCH16240 Low Voltage 16-Bit Inverting Buffer/L.
