FAN2534 - (FAN2534 / FAN2535) 150 mA CMOS LDO Regulator

Description

The FAN2534/FAN2535 family of micropower low-dropout voltage regulators utilize CMOS technology to offer a new level of cost-effective performance in GSM, TDMA, and CDMA cellular handsets, laptop and notebook computers, and other portable devices.

Features

  • 70dB Ripple rejection ( >45dB up to 1MHz) 150µsec Power On Time 150µsec Enable Time Low noise - 50µVrms Enable optimized for CDMA time slices 180 mV dropout voltage at 150 mA Enable/Shutdown Control Enable time independent of noise bypass capacitor value SOT23-5 package Thermal limiting 300 mA trimmed current limit low dropout voltage, fast enable required in CDMA handset.

📥 Download Datasheet

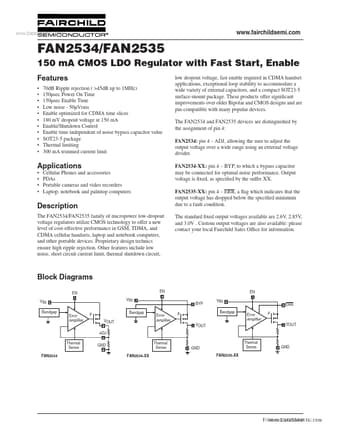

Datasheet preview – FAN2534
