FSB50550T - Smart Power Module

Description

FSB50550T is a tiny smart power module (SPM) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers.

It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving.

Features

  • 500V 3.5A 3-phase FRFET inverter including high voltage integrated circuit (HVIC).
  • 3 divided negative dc-link terminals for inverter current sensing.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

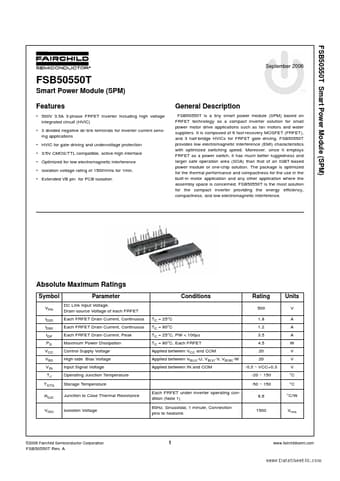

FSB50550T Smart Power Module (SPM) September 2006 FSB50550T Smart Power Module (SPM) Features • 500V 3.5A 3-phase FRFET inverter including high voltage integrated circuit (HVIC) • 3 divided negative dc-link terminals for inverter current sensing applications • HVIC for gate driving and undervoltage protection • 3/5V CMOS/TTL compatible, active-high interface • Optimized for low electromagnetic interference • Isolation voltage rating of 1500Vrms for 1min. • Extended VB pin for PCB isolation General Description FSB50550T is a tiny smart power module (SPM) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving.
