GBPC1506, GBPC12005 Bridge Rectifiers

GBPC1506 Description

GBPC 12, 15, 25, 35 SERIES * Bridge Rectifiers (Glass Passivated) October 2013 GBPC 12, 15, 25, 35 SERIES Bridge Rectifiers (Glass Passivate.

GBPC1506 Features

* Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation.
* Surge Overload Ratings from 300 A to 400 A.
* Isolated voltage from case to lead over 2500 V.
* UL certified, UL #E258596
* Terminals Finish Material - Silver (S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC1506, GBPC12005. Please refer to the document for exact specifications by model.

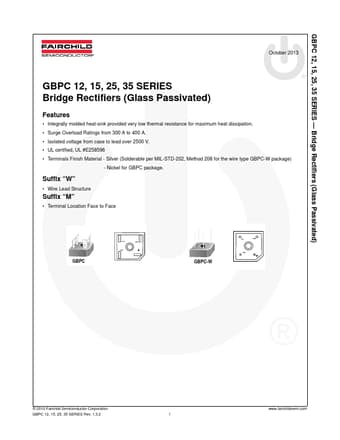

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC1506, GBPC12005
Manufacturer
Fairchild Semiconductor
File Size
152.66 KB
Datasheet
GBPC12005-FairchildSemiconductor.pdf
Description
Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: GBPC1506, GBPC12005.
Please refer to the document for exact specifications by model.
