RC5534 High Performance Low Noise Operational Amplifier

RC5534 Description

www.fairchildsemi.com RC5534/RC5534A High Performance Low Noise Operational Amplifier .
The RC5534 is a high performance, low noise operational amplifier.

RC5534 Features

* Small signal bandwidth
* 10 MHz Output drive capability
* 600W, 10 VRMS at VS = ±18V Input noise voltage
* 4 nV/ÖHz DC voltage gain
* 100,000
* AC voltage gain
* 6000 at 10 kHz Power

RC5534 Applications

* such as unity-gain voltage followers, drivers for capacitive loads or fast settling. The specially designed low noise input transistors allow the RC5534 to be used in very low noise signal processing applications such as audio preamplifiers and servo error amplifiers. +Input 65-3476-01 Pin Assignme

📥 Download Datasheet

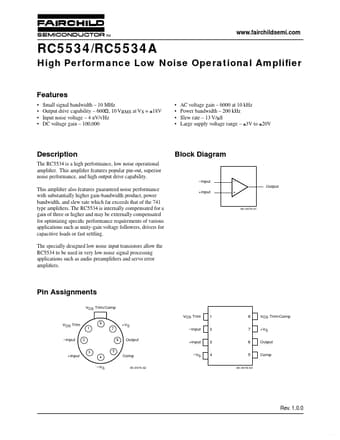

Preview of RC5534 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RC5534
Manufacturer
Fairchild Semiconductor
File Size
102.69 KB
Datasheet
RC5534-FairchildSemiconductor.pdf
Description
High Performance Low Noise Operational Amplifier
