SA150CA - Transient Voltage Supressors

This page provides the datasheet information for the SA150CA, a member of the SA10A Transient Voltage Supressors family.

Datasheet Summary

Features

  • Glass passivated junction.
  • 500W Peak Pulse Power capability on 10/1000 µs waveform.
  • Excellent clamping capability.
  • Low incremental surge resistance.
  • Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional.
  • Typical IR less than 1.0 µA above 10V. DO-15 COLOR BAND.

📥 Download Datasheet

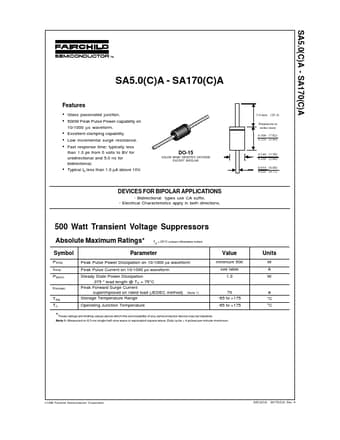

Datasheet preview – SA150CA

Datasheet Details

Part number SA150CA
Manufacturer Fairchild Semiconductor
File Size 52.88 KB
Description Transient Voltage Supressors
Datasheet download datasheet SA150CA Datasheet
Additional preview pages of the SA150CA datasheet.

📁 Similar Datasheet

  • SA150CA - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SA150CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (SEMITECH)
  • SA150CA - 500WATTS TRANSIENT VOLTAGE SUPPRESSOR (MCC)
  • SA150CA - 500W TRANSIENT VOLTAGE SUPPRESSOR (Diodes Incorporated)
  • SA150CA - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • SA150CA - BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • SA150CA - Transient Voltage Suppression Diodes (Littelfuse)
  • SA150CA - Zener Transient Voltage Suppressors (ON Semiconductor)
  • SA150CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (Pan Jit International)
  • SA150C - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
Other Datasheets by Fairchild Semiconductor
  • SA150A - Transient Voltage Suppressors
  • SA15A - Transient Voltage Suppressors
  • SA15CA - Transient Voltage Supressors
  • SA100A - Transient Voltage Suppressors
  • SA100A - Transient Voltage Supressors
  • SA100CA - Transient Voltage Supressors
  • SA10A - Transient Voltage Suppressors
  • SA10CA - Transient Voltage Supressors

Full PDF Text Transcription

Click to expand full text
SA5.0(C)A - SA170(C)A SA5.0(C)A - SA170(C)A Features • Glass passivated junction. • 500W Peak Pulse Power capability on 10/1000 µs waveform. • Excellent clamping capability. • Low incremental surge resistance. • Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. • Typical IR less than 1.0 µA above 10V. DO-15 COLOR BAND DENOTES CATHODE EXCEPT BIPOLAR DEVICES FOR BIPOLAR APPLICATIONS - Bidirectional types use CA suffix. - Electrical Characteristics apply in both directions. 1.0 min (25.4) Dimensions in inches (mm) 0.300 (7.62) 0.230 (5.84) 0.140 (3.56) 0.104 (2.64) 0.034 (0.86) 0.028 (0.
